The four basic colors of red, yellow, blue and black are used to support single-color andmulti-color gradient printing. With a wide color gamut coverage, it achieves a high degreeof color reproduction in printed materials, ensuring color finesse and accuracy. In turn,the visual effect and printing effect of the printed materials have reached an excellentlevel, to meet the user's pursuit of the ultimate color expression.
Pre-treating the surface of the print substrate with plasma not only enablesdeep cleaning and dust removal, significantly improving the surface quality ofthe item, but also significantly enhances the adhesion of the ink on the surfaceofthe object.
After printing, we quickly use UV lamps to cure the ink, ensuring that the inkadheres firmly to the object to achieve the desired printing effect.
The device is equipped with a flexibly adjustable print head that can adjust theprint angle of the nozzle according to different printing requirements, enablinga single machine to print both the front and sides of a product.
The print head can be flexibly adjusted, offering users two printing modes tochoose from. The first is the side printing mode, which enables printing on thesides of molded products. The second is the front printing mode, which isspecifically designed for printing on the top surface of products.
Solving the pain points of traditional printing
No need to make a plate, no MOQ,support smallsingle, loose singlepersonalized customization.
Support single-colormulti-colorgradientcolor printing
It can support a wide range of colorprinting with excellent color rendering.
Front and side integrated printing
Adjustable print head to meetdifferent printing needs.
| Parameter | Value |
| Model Name | CALCA-BZP-UV001 |
| Print Head | Ricoh GEN6 MH5320 x 2pcs |
| Print Width | 54 mm / 75 mm (2.1 in / 3.0 in) |
| Feed Width | 80–550 mm (3.1–21.7 in) |
| Printing Accuracy | 300 dpi (1 column) / 600 dpi (2 columns) |
| Print Speed | 0–40 m/min (0–131 ft/min) |
| Ink Type | Eco-friendly UV ink |
| Color Configuration | CMYK |
| Database Support | TXT, EXCEL, CSV, etc. |
| Printer Dimensions (L x W x H) | 2400 x 1000 x 1650 mm (94.5 x 39.4 x 65.0 in) |
| Net Weight | 381 kg (840 lbs) |
| Power Supply | 220V, 50/60 Hz |
| Operating Environment | Temperature: 15–35°C (59–95°F), Relative Humidity: 20%–80% |
| Total Power Consumption | 5.0 kW |
| Operating System | Windows 7 / Windows 10 |
| Data Interface | Ethernet / Wi-Fi |
| Data Transmission | USB 3.0 (compatible with USB 2.0) |
| Supported File Formats | BMP, PDF, TIFF, JPG, and more |
| Compatible Media | Side surfaces of finished teacups, plastic lunch boxes, pulp lunch boxes, egg cartons, etc. |

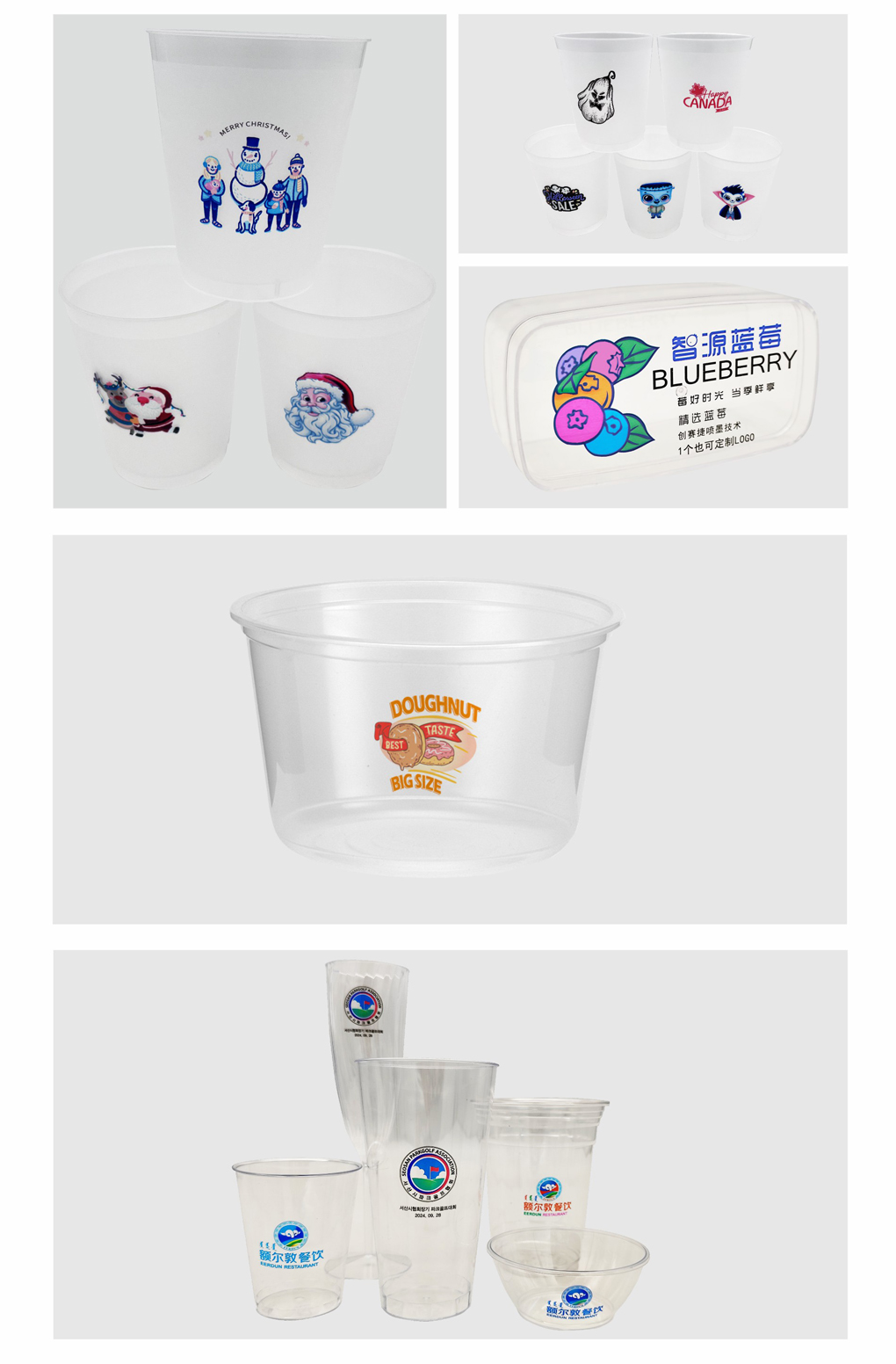

Sample Showcase

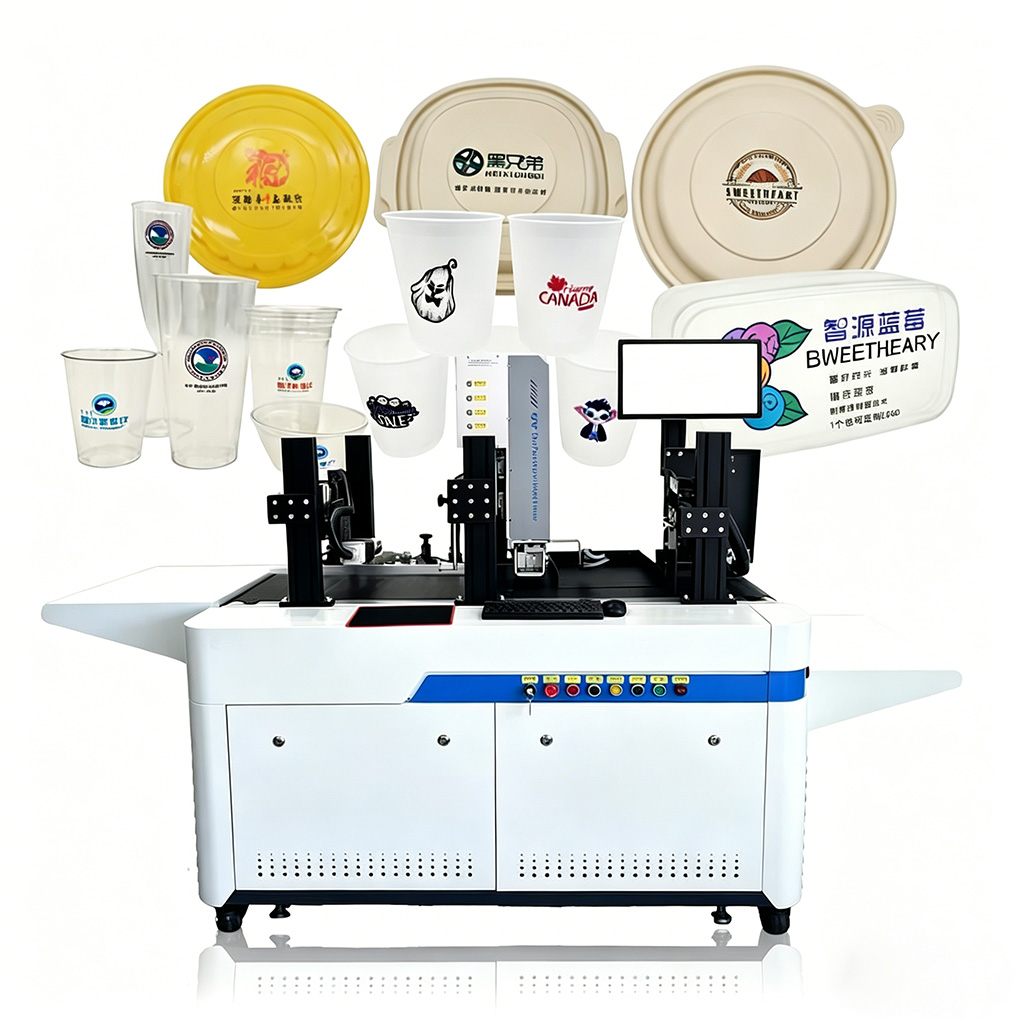

The printer's print head is flexibly adjustable, allowing printing on both the front and side surfaces of a single item. It supports printing on the sides and tops of various media, including plastic food containers, tea cups, and industrial packaging boxes.
| Parameter | Value |
| Model Name | CALCA-BZP-UV001 |
| Print Head | Ricoh GEN6 MH5320 x 2pcs |
| Printing Height | 54 mm / 75 mm (2.1 in / 3.0 in) |
| Print Length/Width | Unlimited |
| Feed Width | 80–550 mm (3.1–21.7 in) |
| Printing Accuracy | 300 dpi (1 column) / 600 dpi (2 columns) |
| Print Speed | 0–40 m/min (0–131 ft/min) |
| Ink Type | Eco-friendly UV ink |
| Color Configuration | CMYK |
| Database Support | TXT, EXCEL, CSV, etc. |
| Printer Dimensions (L x W x H) | 2400 x 1000 x 1650 mm (94.5 x 39.4 x 65.0 in) |
| Net Weight | 381 kg (840 lbs) |
| Power Supply | 220V, 50/60 Hz |
| Operating Environment | Temperature: 15–35°C (59–95°F), Relative Humidity: 20%–80% |
| Total Power Consumption | 5.0 kW |
| Operating System | Windows 7 / Windows 10 |
| Data Interface | Ethernet / Wi-Fi |
| Data Transmission | USB 3.0 (compatible with USB 2.0) |
| Supported File Formats | BMP, PDF, TIFF, JPG, and more |
| Compatible Media | Side surfaces of finished teacups, plastic lunch boxes, pulp lunch boxes, egg cartons, etc. |
| Machine Dimension | 2400 x 1000 x 1650 mm (94.5 x 39.4 x 65.0 in) |
| Machine Weight | 381kg(838.2lb) |
| Package | Wooden box |
| Packing Size | 1700mm x 1150mm x 1810mm(67" x 45" x 71") |
| Gross Weight | 526kg(1157.2lb) |
Warranty
• Lifetime Technical Support
• Limited to 1-year warranty on non-consumable parts
Exceptions: Consumable Items
All Printers: Components that come in contact with inks includes the ink system, print heads, capping station (ink station), dampers, ink pump, ink tank, ink mixer, ink lines and power pump, consumable parts like CR motor, encoder strip, belt, decoder, sensors, wiper, print head cables, fans, rip software (discs or digital).
Company or person requesting warranty repair shall contact CALCA for pre-authorization and selection of a qualified repair technician to service the equipment prior to performing service on the equipment. Failure to request pre-authorization for service repair and selection will result in denial of a warranty claim.
CALCA will not be liable for labor or material costs associated with graphic production, graphic application, equipment downtime or any other consequential damages including loss of profits or potential business sales, arising out of a warranty claim. It is the user's responsibility to secure the equipment and surrounding area to prevent damage from damages arising from a warranty claim. CALCA is not responsible for damages from improper care, maintenance or repair of equipment associated with normal operation.
Extended Warranty:
- Printers: Extend to 2 years for an additional $999
