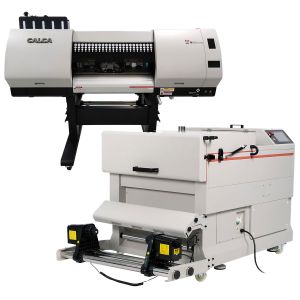

CALCA Ultra PRO II 24inch DTF Printing System (Dual Epson I3200-A1 Heads, Automatic Recycling Powder Shaker and Dryer)

Save over 4% on bundle purchases!

Item Code: DTFS-UP-24G-US

Unit Price: $19,999.00/set

Payments as low as $418 / mo

Apply to See Distributor Price

Get Coupon: $500Order ≥ $4999 $200Order ≥ $1999 $100Order ≥ $999 $50Order ≥ $499 $30Order ≥ $299 $10Order ≥ $99

Quantity:
set(s) Total Cost:  $19,999.00
Buy It Now Add to Cart Inquire Now PayPal Pay Later

Buyer Protection

CALCA Ultra PRO II 24inch DTF Printing System (Dual Epson I3200-A1 Heads, Automatic Recycling Powder Shaker and Dryer)
Buy It Now

CALCA Ultra PRO II 24inch (600mm) DTF Printer (Direct to Film Printer) with Dual Epson I3200-A1 Printheads

CALCA Ultra series DTF printer is built for production workshops & factories.
This DTF printer leads the development of technology and durable products in the DTF markets, drive performance and efficiency in DTF products.

Features
√ CALCA control system, the leading brand from independent R&D team.
√ Self-developed control system and RIP software.
√ Touch screen control panel makes everything easier.
√ Ultra-high stability, from unified development, not patchwork.
√ Processional, Obtain the Adobe PDF Print Engine certificate, maximum efficiency performance, control, automate and optimize full-gamut rendering.
√ Perfect combination of RIP and printing management in same software.
√ Durable housing, high efficiency output.
√ Dual-head technology, designed for high volume production.
A dual print-head system prints colors in perfect sequence to achieve maximum life and vibrancy. The first print head lays down a mix of CMYK colors, while the second print head prints a perfect white underbase on top of the colors, ensuring you don’t see any white ink.

Technical Specs:

24in (620mm) maximum print width
Dual Epson I3200-A1 Printheads (CMYK - WWWW)
1.8 Liter per color ink bottle capacity
4 Pass 6 Pass and 8 Pass Print Resolution
Printing Speed: 4 pass: 12m²/ h; 6 pass: 8m²/ h; 8 pass: 6m²/ h
Printing Resolution: 720 x 1200dpi; 7200 x 1800dpi; 720 x 2400dpi (4Pass, 6Pass, 8Pass)
Printing Software: DTF Fairy RIP Software
Control System: CALCA Control System
Print Head Cleaning: Automatic
Rewinding Function: Automatic
Printer Size: 69.5in x 27.6in x 53.3in (1765mm x 700mm x 1355mm)
Printer Weight: 396lbs (180kg)
Packing Size: 73.6in x 39.4in x 28.7in (1870mm x 1000mm x 730mm)
Gross Weight: 440.9lbs (200kg)

Requirements:
• Working Power Supply: AC110V, 50HZ / 60HZ, 1 phase.
• Current: 11A, 1200W
• Operating System: XP / Win7 / Win10
• Interface: Gigabit Ethernet
• Temperature control set to 20-35°C (68°F-95°F) and 45% - 65% humidity

Complete DTF Workflow


US Stock, CALCA PRO 24in Automatic Recyling DTF Powder Shaker and Dryer with Vacuum Absorption Conveying Platform and Touch Screen


With the advancement in DTF technology, there is no denying that DTF is taking the printing industry by storm. It is quickly becoming one of the most popular technologies for textile printing compared to traditional printing methods.
This all in one dtf powder shaker unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
The vacuum absorption conveying platform secures the printing material to avoid bulging, run-offs, and media waste.
Applicable Medium: Nylon, Chemical Fiber, Cotton, Leather, Swimsuit, Diving Suit, PVC, EVA, etc.

Specifications:
CALCA Brand: USA registered
Maximum Shake Powder Width: 600mm (23.6inches)
Functions: Shake powder control, dusting control, PID setting of curing temperature
Heating Element: Quartz infrared heat drying tube
Rewinding Function: Automatic induction rewinding
Heating and Drying Mode: Front guide plate heating, upper drying curing
Cooling Mode: 4 fan air cooling (single row)
Machine Size: 63.8in x 35.9in x 39.1in (1620mm x 912mm x 992mm)
Powder Shaker and Dryer Weight: 419lbs (190kg)
Packaging Size: 55.9in x 44.1in x 43.8in (1420mm x 1120mm x 1113mm)
Gross Weight: 529lbs (240kg)
Automatic powder recycle gear: There are 1-5 gears to choose from, and the 3rd gear is used by default, which can meet most printing speeds.
Powder box cleaning function: Press and hold for 5 seconds to start the cleaning function.
Compatible with media within a width of 23.6inches: Meet the printing speed of 6-20 square meters per hour.
Powder spreading structure: The motor drives the brush to rotate to brush the hot melt powder out of the powder box.
Powder shaking device: the motor drives the powder shaking lever to beat the film to clean up excess hot melt powder.

Requirements:
Working Power Supply: AC220V, 50hz / 60hz, 1 phase.
Current: 24A, 5200W
With CALCA DTF film, powder and inks, you can easily and quickly create custom t-shirts and apparel.

Features:

√ New automatic powder recycle function, more convenient and labor saving.
√ Longer folding dryer, more energy efficient.
√ Compact size / small footprint.
√ Touch screen control panel makes everything easier.
√ Infrared drying and heating improves and protects color reproduction.
√ Absorption conveying platform secures the printing material to avoid bulging, run-offs, adhesion and media waste.
√ Manual/automatic dusting switchable, new function of the powder box cleaning, one-click automatic cleaning of the powder box.
With the advancement in DTF technology, there is no denying that DTF is taking the printing industry by storm. It is quickly becoming one of the most popular technologies for textile printing compared to traditional printing methods.

The DTF Process:

DTF Printing Advantages:

Complete DTF Workflow:
Applications:

Samples:

This product has no Specifications


CALCA-DTF-TT240 User Manual

Warranty
> Lifetime Technical Support
> Limited to 2-year warranty on non-consumable parts
> Warranty on parts only for printer(s) using CALCA DTF inks, films, and printer(s) under proper maintenance and usage.
> 1 year warranty on non-consumable parts if you don't use CALCA’s ink, film and powder products.

Company or person requesting warranty repair shall contact CALCA for pre-authorization and selection of a qualified repair technician to service the equipment prior to performing service on the equipment. Failure to request pre-authorization for service repair and selection will result in denial of a warranty claim.

CALCA will not be liable for labor or material costs associated with graphic production, graphic application, equipment downtime or any other consequential damages including loss of profits or potential business sales, arising out of a warranty claim. It is the user’s responsibility to secure the equipment and surrounding area to prevent damage from damages arising from a warranty claim. CALCA is not responsible for damages from improper care, maintenance or repair of equipment associated with normal operation.
