CALCA UV DTF Bundle A3 for Crystal Label Printing Solution, with A3 UV Printer, Laminator, UV Ink, Laminating Plus AB Film
This is a 2-in-1 roll to roll uv printer - Print on A film then transfer (UV DTF printing) or print direct on objects (direct to substrate printing).

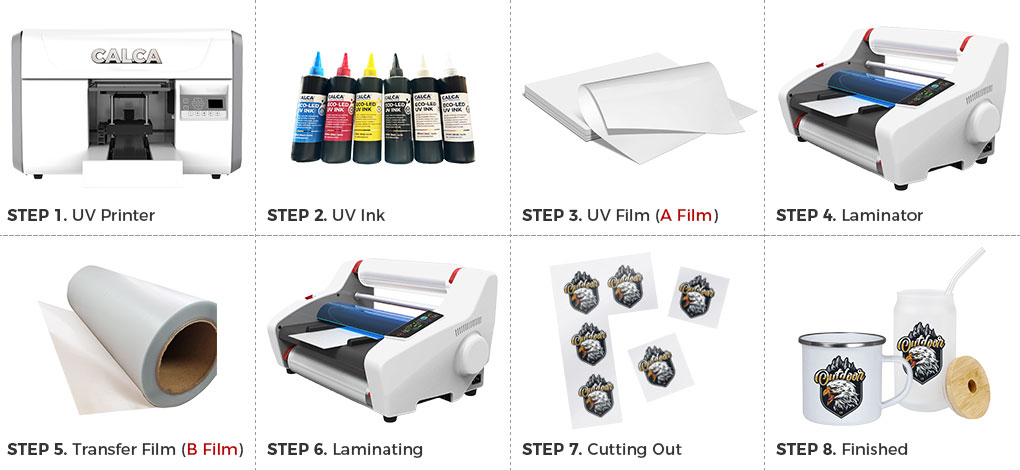

CALCA A3 UV DTF, Crystal Label complete system solution including:
1 set of CALCA A3 LED UV Flatbed Printer;
1 set of Desktop Roll laminating;
100pcs of Crystal Label Film A;
1 roll of Crystal Label Film B;
1 set 8 bottles of UV Ink with CMYKWWVV;
√ The resolution can reach 1200 dpi, and it can produce up to 8-color output.
√ Compact, less foot print.
√ Humanized design operation panel, convenient and fast operation.
√ Various functions, support flat and roll printing.
√ Simultaneous output of white, color and varnish.
√ High precision lifting vacuum table - the flatness can be controlled within 0.1mm.
√ Intelligent ink supply system - with ink shortage alarm function.
Print size: 297 x 420mm(11.69in x 16.53in)
Print Head: EPSON I3200 x 1pc
Nozzle spray force range: 2-3mm(0.0787in-0.0118in)
Number of nozzle: 3200 (Individual)
Distance between nozzles: 1/300inch
Numbers of nozzle rows: 8
Maximum number of supported ink colors: 8
Effective print width: 300npi/1 list, 600npi/1 list, 1200npi/1 list
Droplet ejection performance(Droplet volume and ejection frequency):
2 levels of grayscale 5 pl (43.2KHz)
3 levels of grayscale 6, 12.5 pl (21.6KHz)
4 levels of grayscale 3.8, 6.2, 9.3 pl (21.6KHz)
Print height: 0-85mm(0-3.34in)
Ink type: Environmental UV curing ink
Print version: White and color and varnish print as same time
RIP Software: Future Rip
Print speed: 0.28-3sqm/h
Highest print solution: 720 x 1200dpi
Connection method: Network cable
Graphic format: Tiff, Jpg, Eps, Pdf, Png
Printer dimension(L x W x H): 100 x 902 x 592cm (39.37 x 35.51 x 23.31in)
Net Weight: 60kg (132.28lbs)
Packing size(L x W x H):112 x 102 x 78cm (44.09 x 40.16 x 30.71in)
Gross Weight: 80kg (176.37lbs)
Power: AC220 / AC110V, 50-60HZ, 1 phase; 140W, 1.3A(110V) / 0.6A(220V)
Working environment:Temperature:20℃-28℃(68℉-82.4℉); humidity: 35%-65%

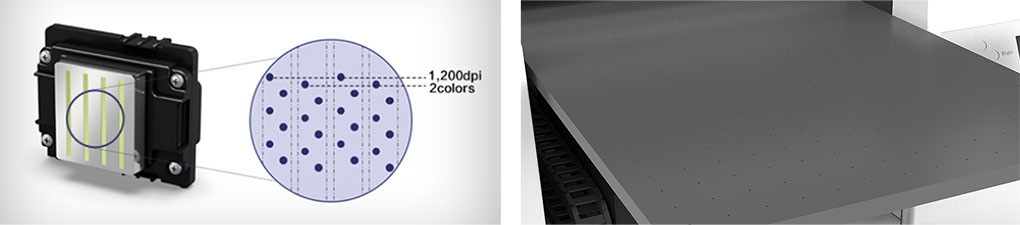

|EPSON I3200 print head - 1200 dpi reaches the highest resolution in the industry, creating excellent photo quality.
||Lifting vacuum table - High-precision honeycomb hard aluminum platform, the flatness it controlled within 0.1mm.

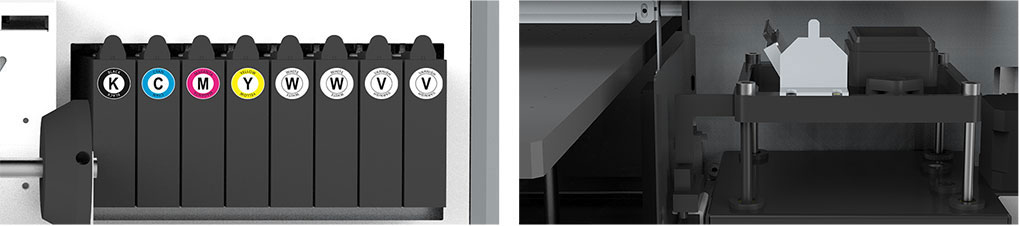

|Intelligent ink supply system - New ink cartridge design, with ink automatic circulation, ink shortage alarm function.
||Lifting capping station design - The motor drives the capping station to rise and fall, precisely controls the position of the carriage and better protects the head.

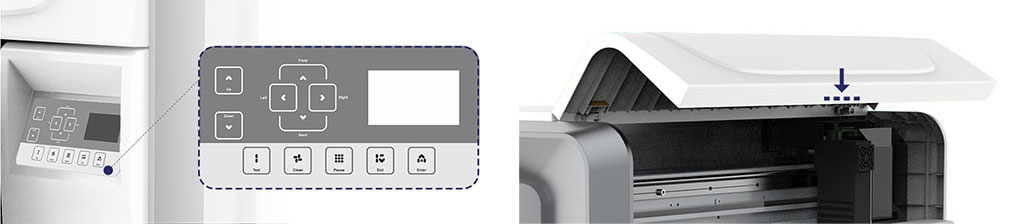

|Multifunctional control panel - Humanized design, in line with human habits, flexible and easy to operate.
||Full coverage shade cover - Light-shielding, dust-proof, touch-proof.
① printing process: White ink, color inks, varnish. You can print varnish before printing white to get a better result. Please use the hard UV ink or mild hard UV ink.
② Please laminate the film after printed to avoid exposure the adhensive in air. And cut the printed film at least 30 mins after laminating.
