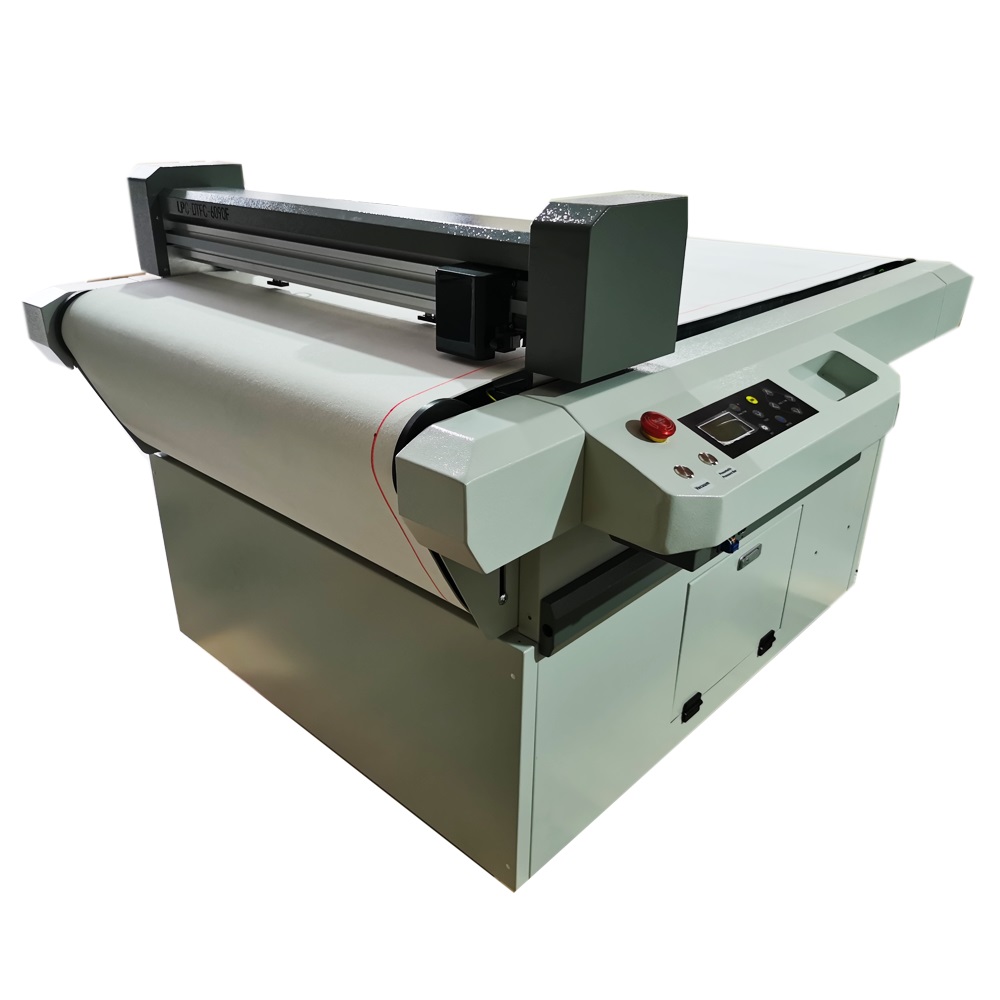

CALCA 32" x 36" Auto Fed Flatbed Digital Cutter Roll Cutter for DTF Printing Film (6090G)
Buy It Now

CALCA 32" x 36" Auto Fed Flatbed Digital Cutter Roll Cutter for DTF Printing Film (6090G)
Flatbed cutter with conveyor feeding, a special purpose auto fed flatbed digital cutter for DTF industry with features optimized according to characters of material applied in the DTF field.
Super easy installation, one-key operation and high efficiency make GR6090 a right-hand man for DTF, Heat transfer apparel industries.

Compatible with Cadlink, AutoCAD, CorelDRAW, and CALCA DTF Fairy RIP Software (Print-to-cut).
Batch cutting, guarantee of high efficiency.

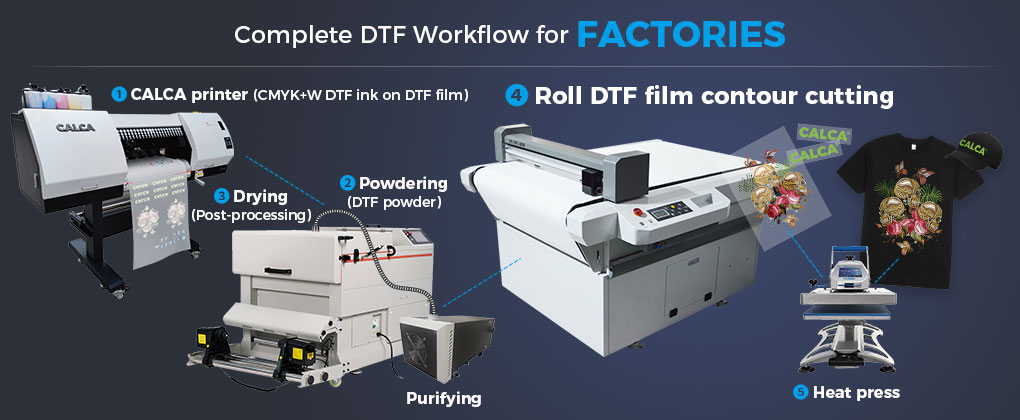

Gang sheets are widely used in the production of custom dtf heat transfers – both screen printed and digitally manufactured. CALCA roll cnc cutter can maximize your efficiency and minimize the cost.


Spare Part Package includes:
1set x User manual
2pcs x Blade holder
6pcs x Blade
1set x Allen wrench
1pcs x Power Cable
1pcs x USB Cable
1pcs x U Disk
1pcs x SignWorkPro
1pcs x Fan with silencer

Application:
Used for fraffic signs industry, vehicle decoration, automotive aftermarket, sign makers, packaging, apparel
signing, shoes designing, bags designing, composite industry, offset printing, samples making , POP displays, and more.
It is an efficient solution of perforation cutting, half cutting, creasing, marking, etc.

Applicable Media:
Reflective sheeting, PPF, Window Tint, PPE, PET, PVC, Vinyl Sticker, etc.

Features:

Note:
The device has a CCD camera and does not have barcode scanning function. The yellow button is the standby button. If you need to scan the barcode, please contact customer service.

Specification
Model LPC-DTFC-6090G
Power Input  AC 110V, 60Hz
Power Consumption  2.2kw, 20A
Max. Media Width 810mm(31.9")
X axis working size 710mm(30")
Y-axis working size 910mm(35.8")
Material Thick  0.05-1.5mm
Max Cutting Speed  800mm/s
Cutting pressure  600g
Software resolution  0.025mm
Mechanical resolution  0.0125mm
Cutting pressure setting  Adjustable per 1 gram
Minimum character size  English Arabic characters are about 1-2MM
Interfaces  USB2.0 U Disk
Method to Fix Media  Vacuum Table
Cutting Force Setup  Adjustable in Every 1G
Cutter Blade Diameters  Φ2.0mm
Cutter Blade Angles  30°, 45°, 60°
Dotted Lines Cutting  Yes
Drive  AC Servo
IOS  Win10 / 8 / 7 / XP
Memory Buffer  2MB
CAD/CAM Software  Windows Driver, SignWorkPro, CADtoPlotpro
Compatible Software  Cadlink, AutoCAD, CorelDRAW, CALCA DTF Fairy RIP
File Format  DXF
Port in Standard  USB, RS-232
Registration Marks Recognition  CCD Camera
Cutter Holder  1
Roll Media Bracket  Yes



Packing List
Machine Dimension  1520 x 1120 x 1030mm
Net Weight  190kg
Package  Standard Wooden case for export
Package Size  1600 x 1200 x 1180mm(63" x 47" x 46")
Gross weight  280kg(617.3lb)

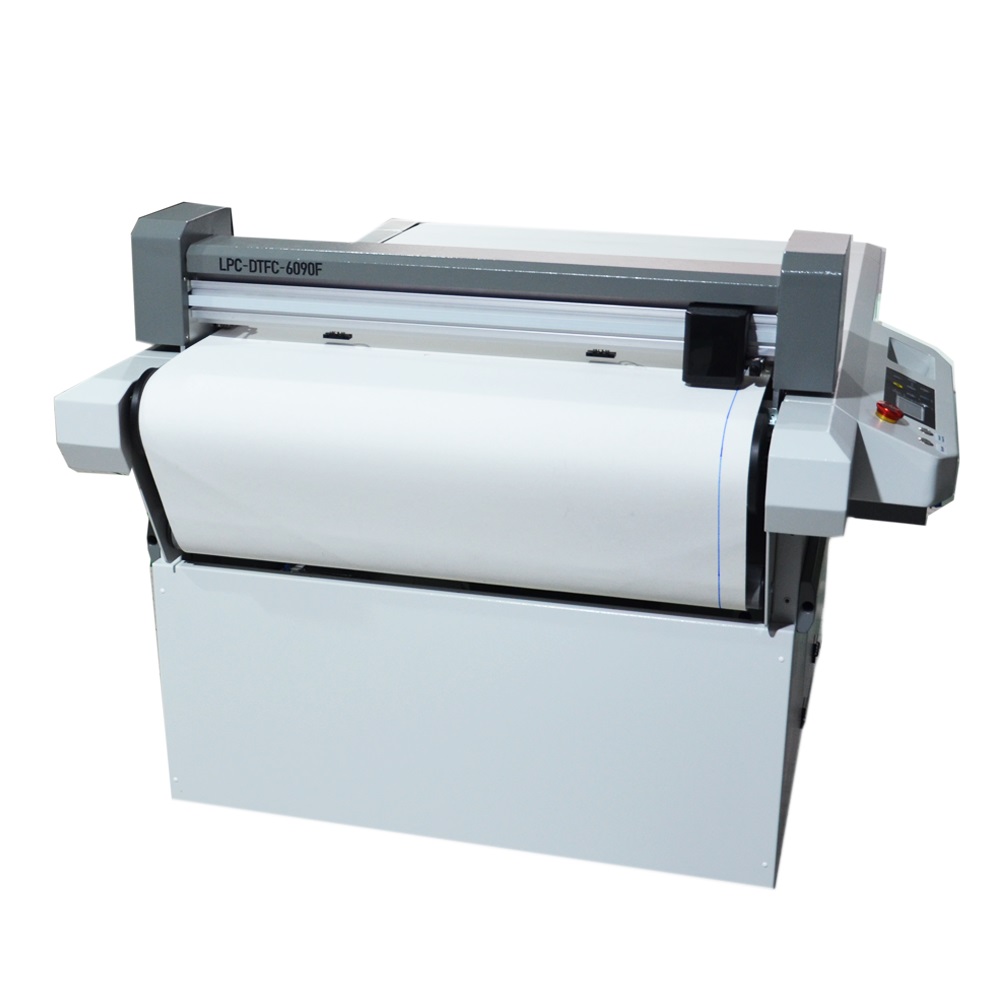

CALCA 24" x 35" Auto Fed Flatbed Digital Cutter Roll Cutter For DTF Printing Film


6090 User Manual


Cadlink driver installation Tutorial

SignWorkProSetup_calca20230320

Lifetime Technical Support
Limited to 2-year warranty on non-consumable parts. Normal wear and tear of equipment and consumable items (such as blades, cutting mats and push roller wheels) are not covered by the warranty.

Company or person requesting warranty repair shall contact CALCA for pre-authorization and selection of a qualified repair technician to service the equipment prior to performing service on the equipment. Failure to request pre-authorization for service repair and selection will result in denial of a warranty claim.
CALCA will not be liable for labor or material costs associated with equipment downtime or any other consequential damages including loss of profits or potential business sales, arising out of a warranty claim. It is the user’s responsibility to secure the equipment and surrounding area to prevent damage from damages arising from a warranty claim. CALCA is not responsible for damages from improper care, maintenance or repair of equipment associated with normal operation.
