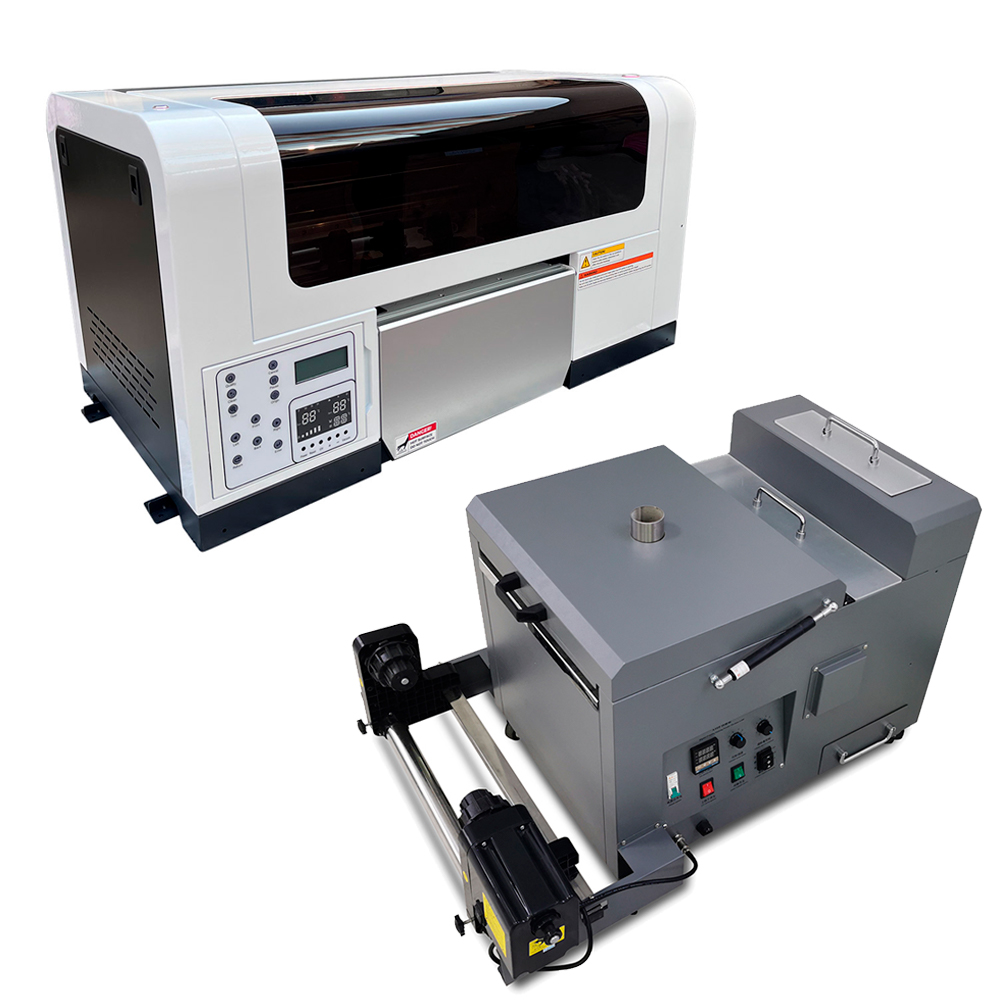

CALCA Legend 13in DTF Printing System (Dual Epson XP-600 Printheads)

Arrival in 2-5 business days.

Item Code: DTFS-LEXP-TT13-US

Unit Price: $8,399.00/set

Finance as low as $233 / mo

Apply to See Distributor Price

Inquire Now

Buyer Protection

CALCA Legend 13in DTF Printing System (Dual Epson XP-600 Printheads)
Buy It Now

CALCA Legend 13in DTF Printing System (Dual Epson XP-600 Printheads)
Technical Specs:

13inch (330mm) maximum print width
Dual Epson XP-600 Printheads
Ink Sort: Textile Pigment Ink
500ml per color ink bottle capacity
Media: PET Film
Thickness: 0.06in to 0.24in (1.5mm to 6mm) Adjustable
Maximum Roll Weight: 396lbs (20kg)
Media Heater: Pre / Rear Heater (Can be controlled separately)
4 Pass 6 Pass and 8 Pass Print Resolution
Printing Speed: 4 pass: 8m²/ h; 6 pass: 5m²/ h; 8 pass: 3m²/ h
Printing Resolution: 360 x 1800dpi; 360 x 2400dpi; 360 x 3600dpi (4Pass, 6Pass, 8Pass)
Interface: Gigabit Network Port
Printing Software: Flexi PhotoPrint RIP
Print Head Cleaning: Automatic
Printer Size: 38.6in x 25.6in x 20.9in (980mm x 650mm x 530mm)
Printer Weight: 198lbs (90kg)
In-house custom-made tough and rugged flight case, which offers the best protection for your DTF printer.
Reusable: Display your equipment.It is constructed from high-quality, water repellent 9 mm thick plywood, complete with a smart black finish exterior, aluminium protected edges and tough steel corners.

Packing Size: 43.3in x 27.8in x 30.5in (1100mm x 705mm x 775mm)
Gross Weight: 265lbs (120kg)

Requirements:
• Working Power Supply: AC110V / 220V, 50HZ / 60HZ, 1 phase.
• Current: 11A / 6A, 1200W
• Operating System: Win7 / Win10
• Temperature control set to 20-35°C (68°F-95°F) and 35 - 65% humidity
• Relative Humidity: 40-60%

CALCA 13.4in (340mm) Economic Automatic TPU Adhesive Powder Shaker and Dryer Unit
CALCA DTF powder shaker and dryer unit can handle up to 13.4in wide DTF film.
DTF opens the door to a wide range of choices and is capable of printing onto non-treated cotton, silk, polyester, denim, nylon, leather, 50/50 blends, and more. It works equally well on white and dark textiles.
This all in one dtf powder shaker unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
Applicable Medium: Nylon, Chemical Fiber, Cotton, Leather, Swimsuit, Diving Suit, PVC, EVA, etc.
Powder spreading structure: The motor drives the brush to rotate to brush the hot melt powder out of the powder box.
Powder shaking device: the motor drives the powder shaking lever to beat the film to clean up excess hot melt powder.

Specifications:
CALCA Brand: USA registered
Maximum Shake Powder Width: 340mm (13.4inches)
Functions: Shake powder control, dusting control, PID setting of curing temperature
Heating and Drying Function: Quartz infrared heat drying tube
Rewinding Function: Automatic induction rewinding
Heating Mode: Upper drying heating
Machine Size: 35.7in x 21.3in x 22.6in (907mm x 542mm x 574mm)
Powder Shaker and Dryer Weight: 79.2lbs (36kg)
Packaging Size: 29.5in x 23.4in x 23.2in (750mm x 595mm x 590mm)
Gross Weight: 110lbs (50kg)

Requirements:
Working Power Supply:AC110V, 50hz / 60hz, 1 phase.
Current: 15A, 1650W
With CALCA DTF film, power and Inks, you can easily and quickly create custom t-shirts and apparel.

Features:
• With a warming inlet platform, automatic powder dispenser, paddle to remove excess powder, 4 bulb tunnel dryer and roll up at the end.
• This all in one unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
• Infrared drying and heating improves and protects color reproduction.
• Customized powder recycling drawer, increases effectiveness.
• Shake powder control, dusting control, PID setting of curing temperature.
• Automatic powder feeding, evenly spreading powder.
The DTF Process:

DTF Printing Advantages:

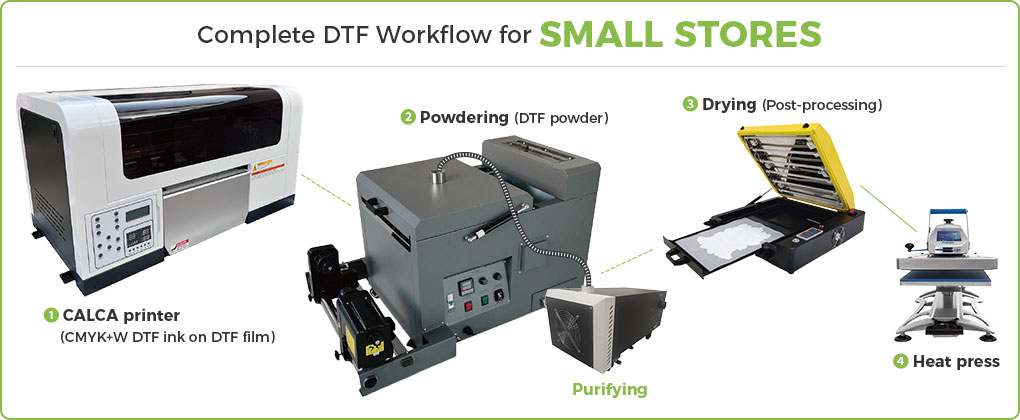

Complete DTF Workflow:

Applications:
Samples:
