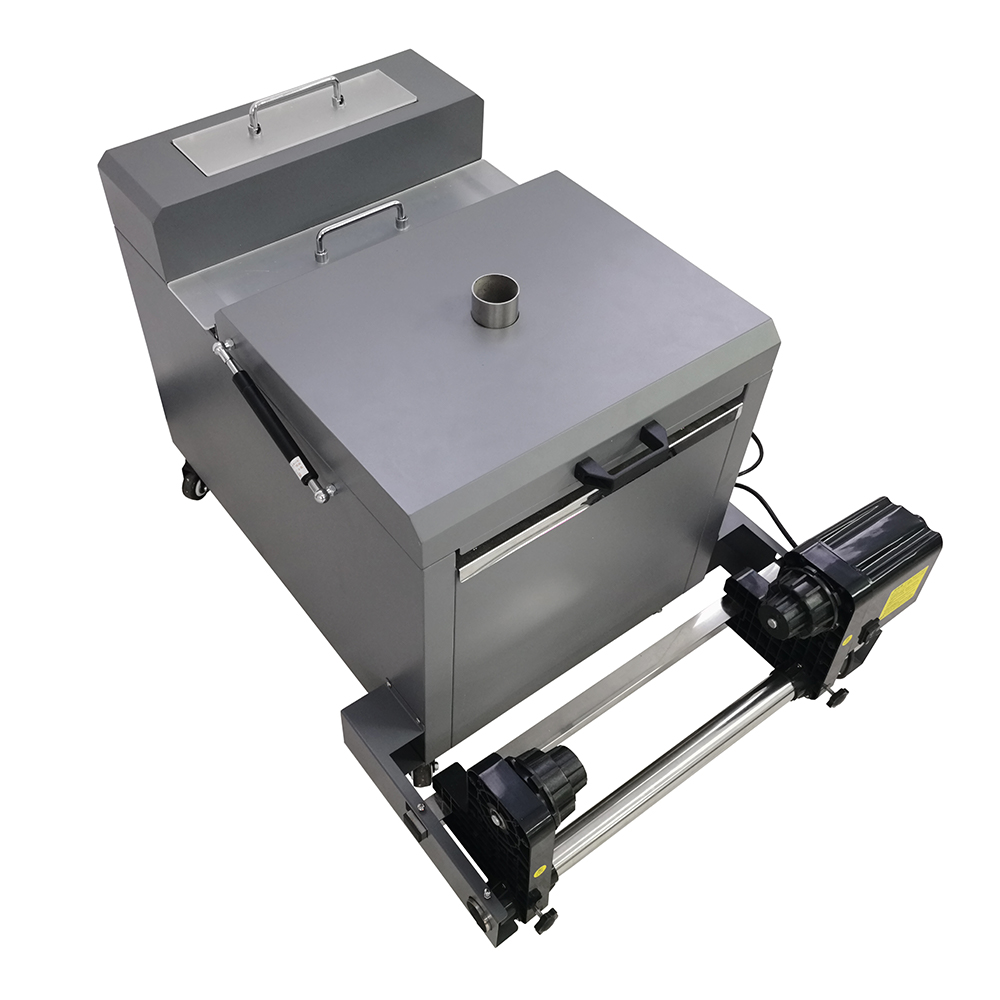

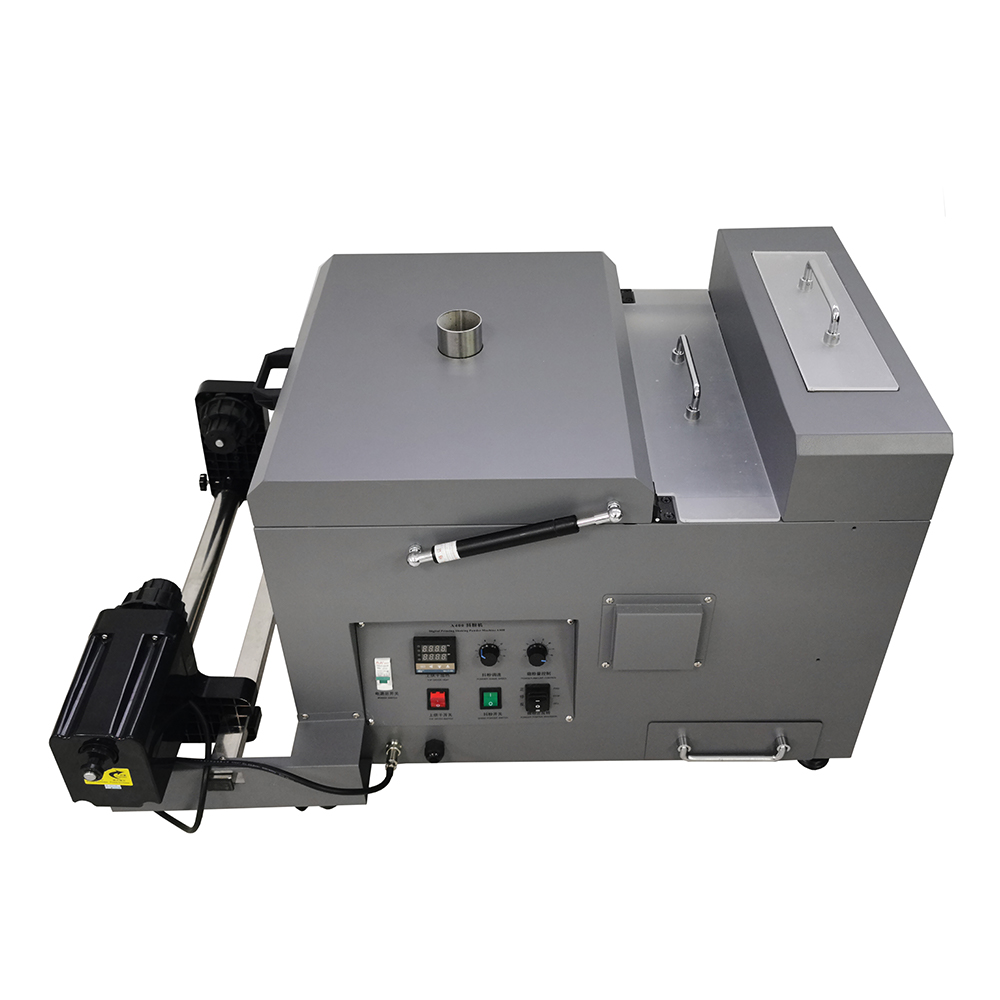

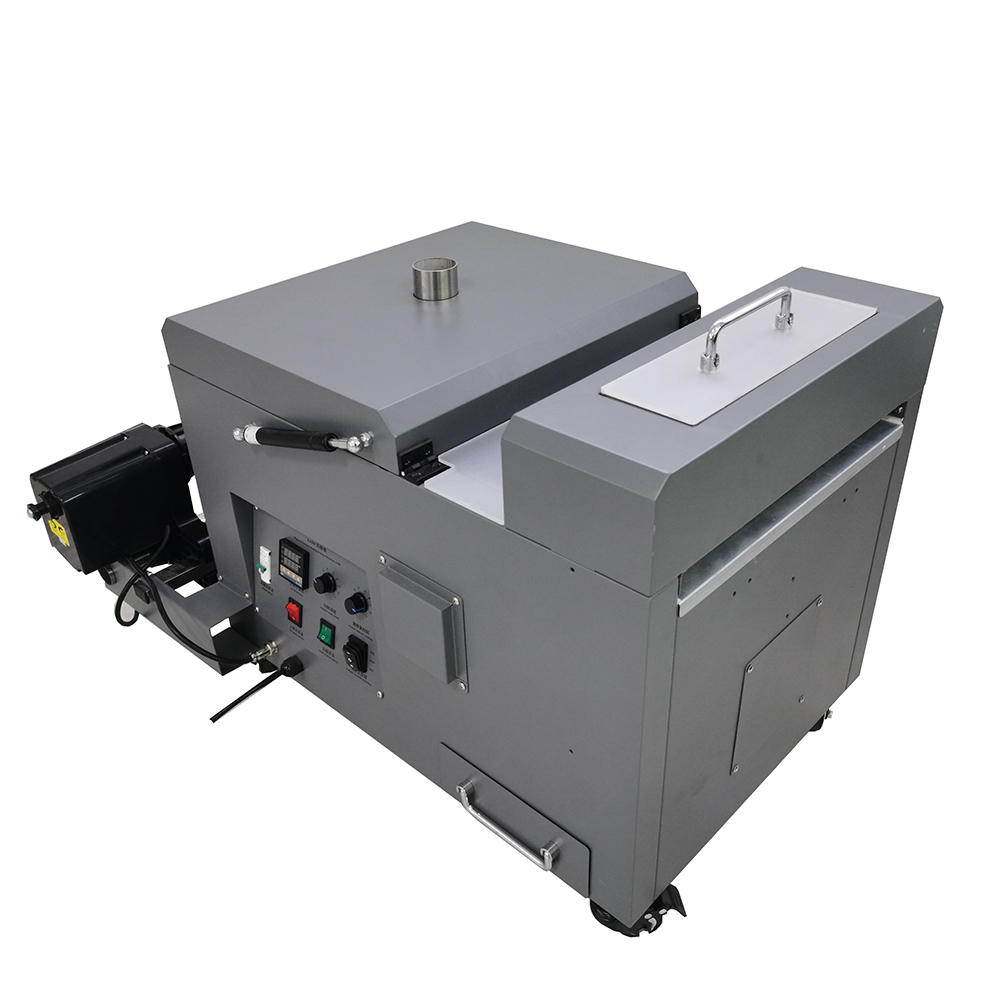

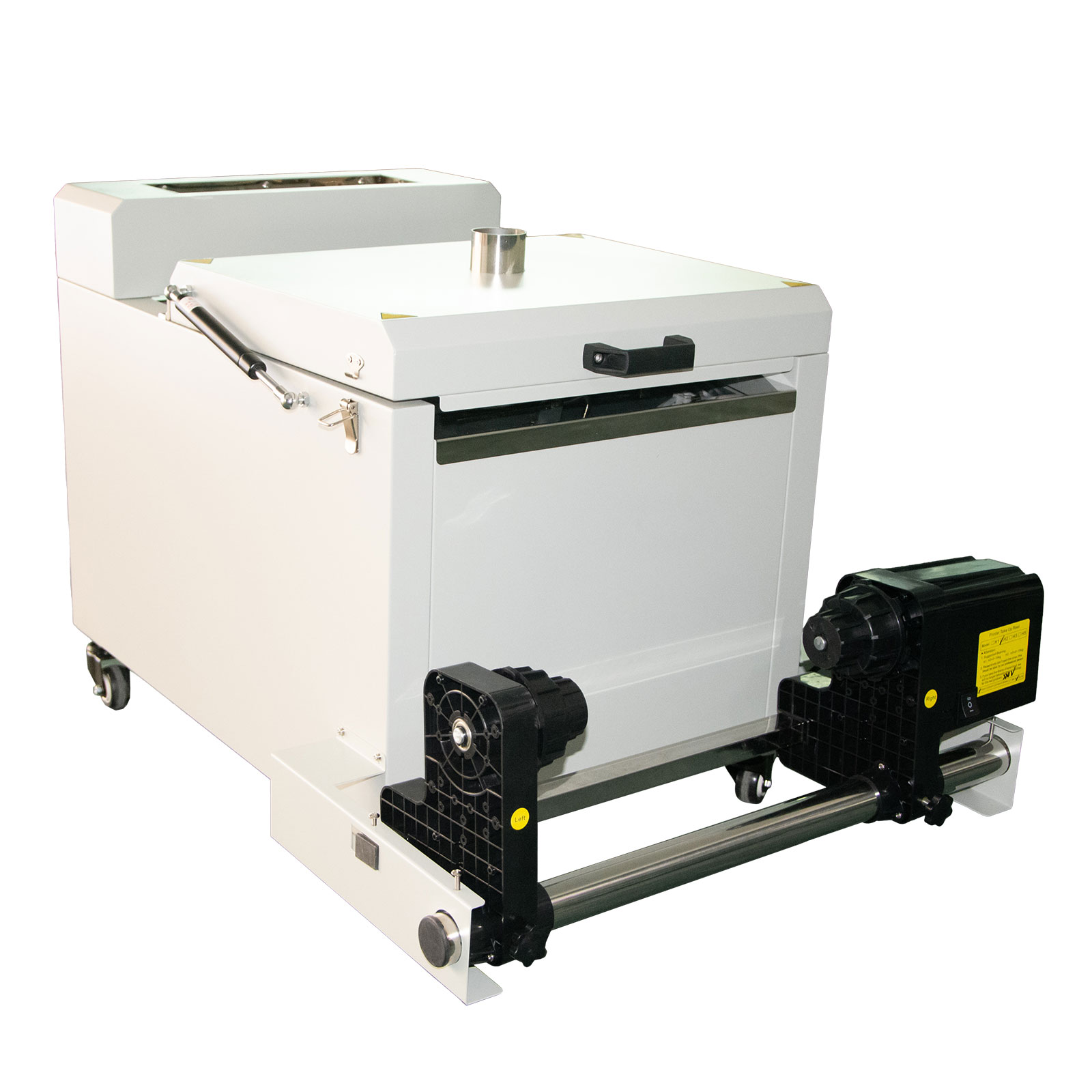

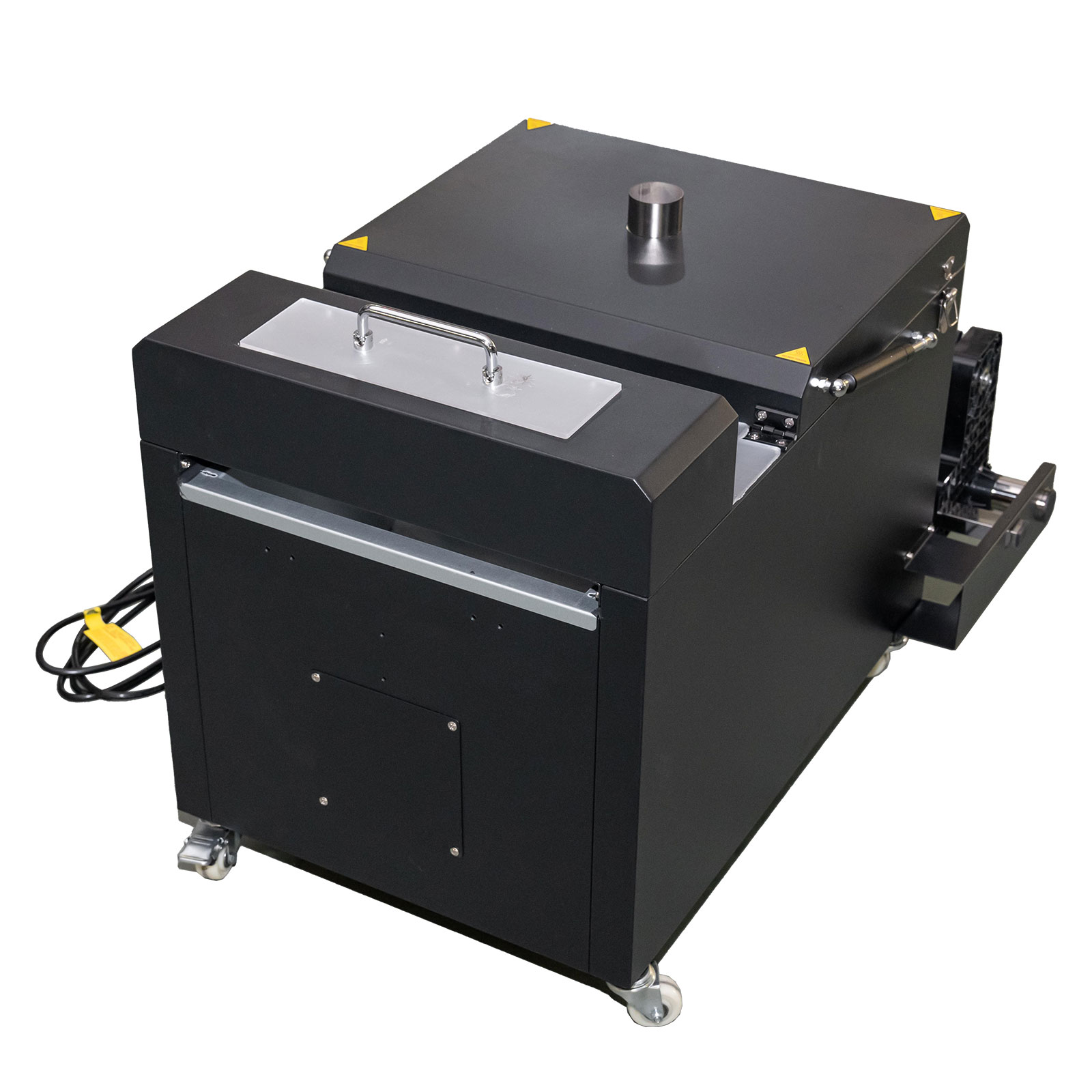

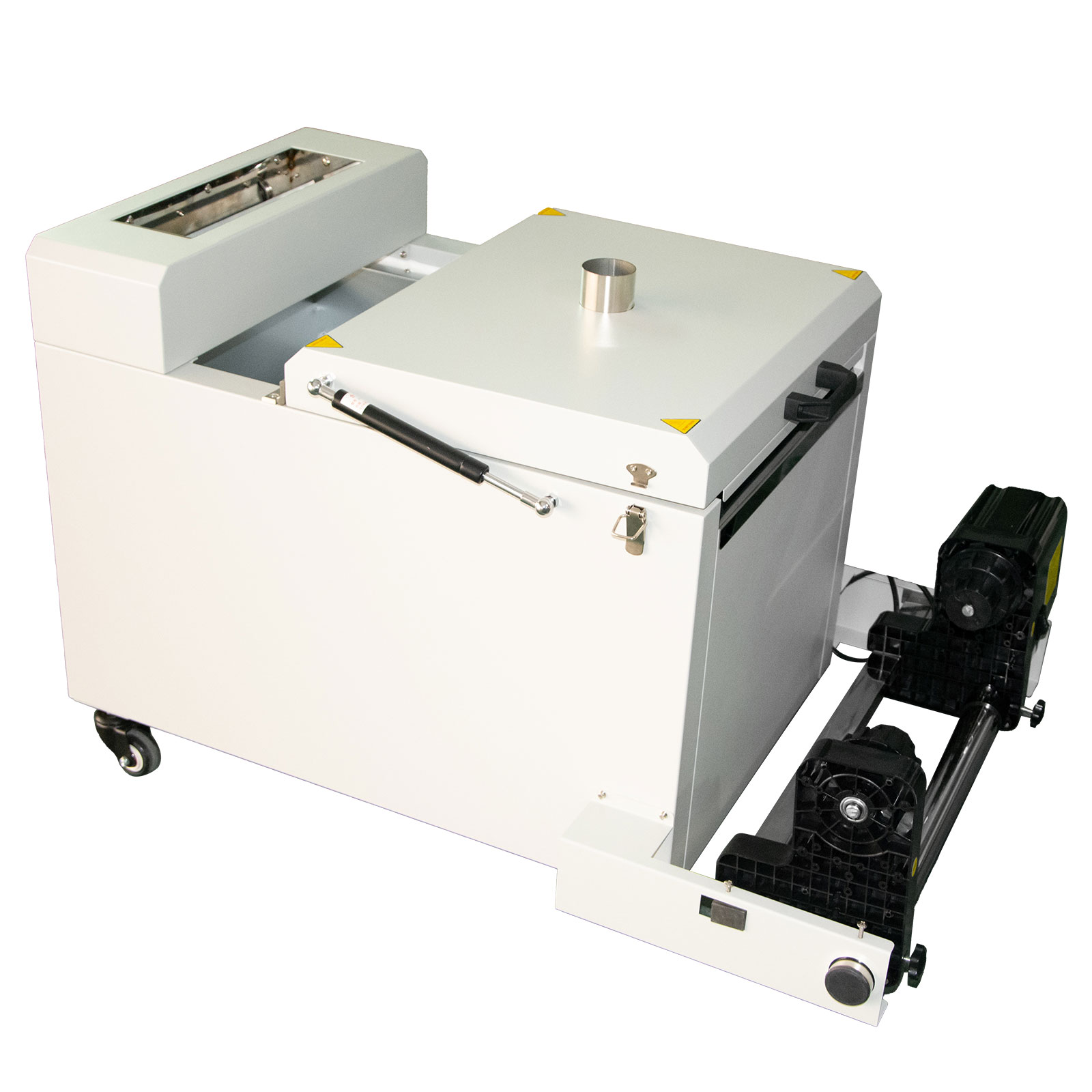

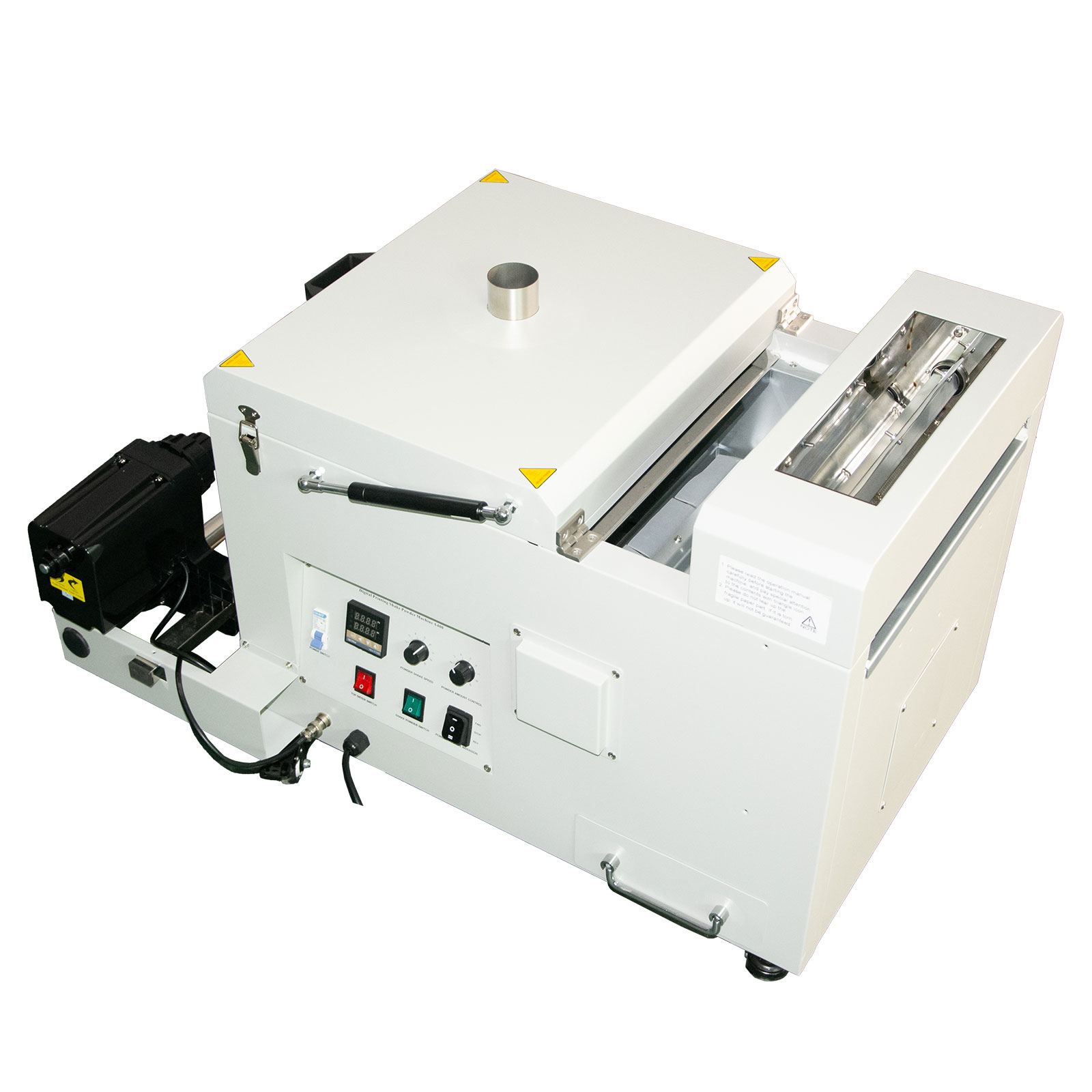

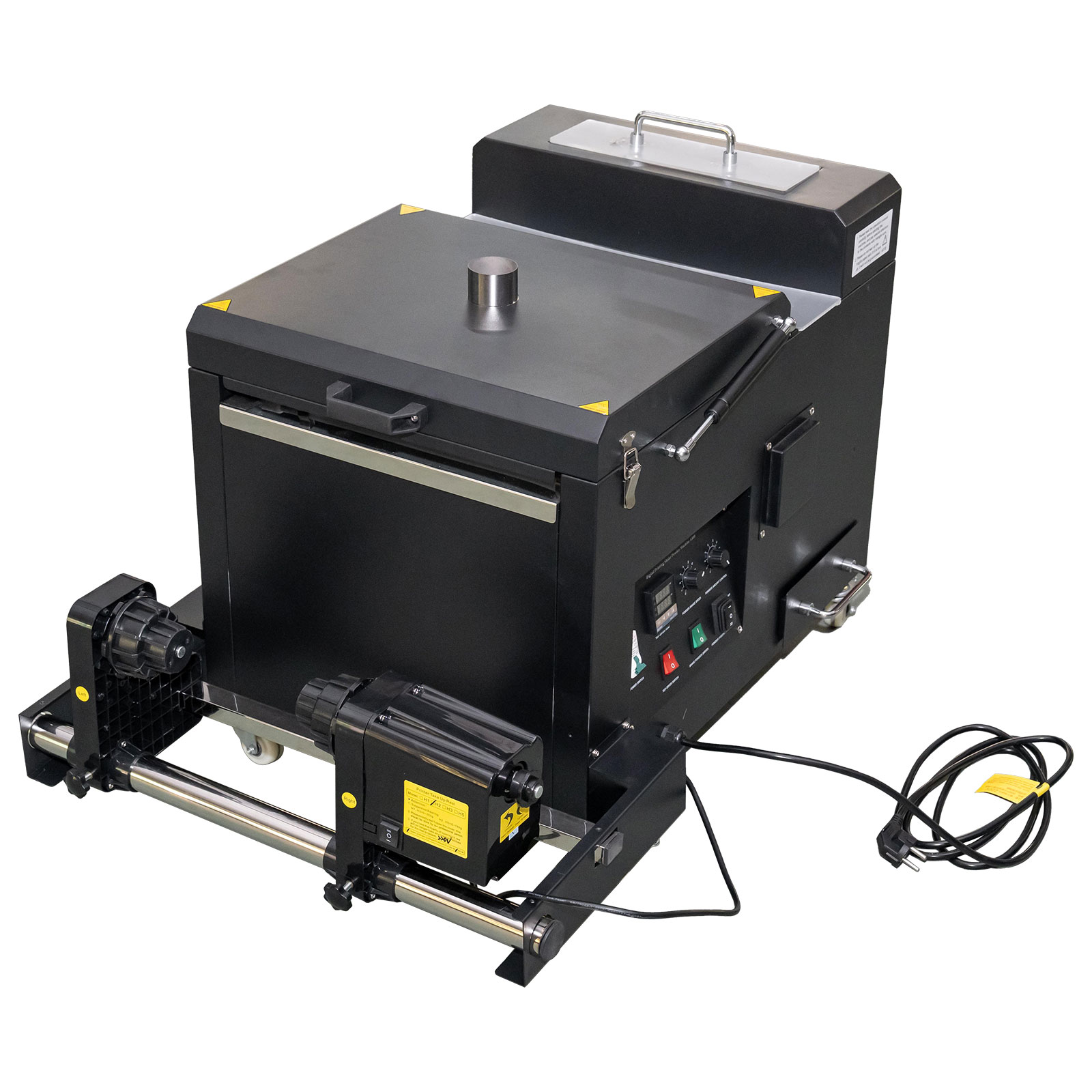

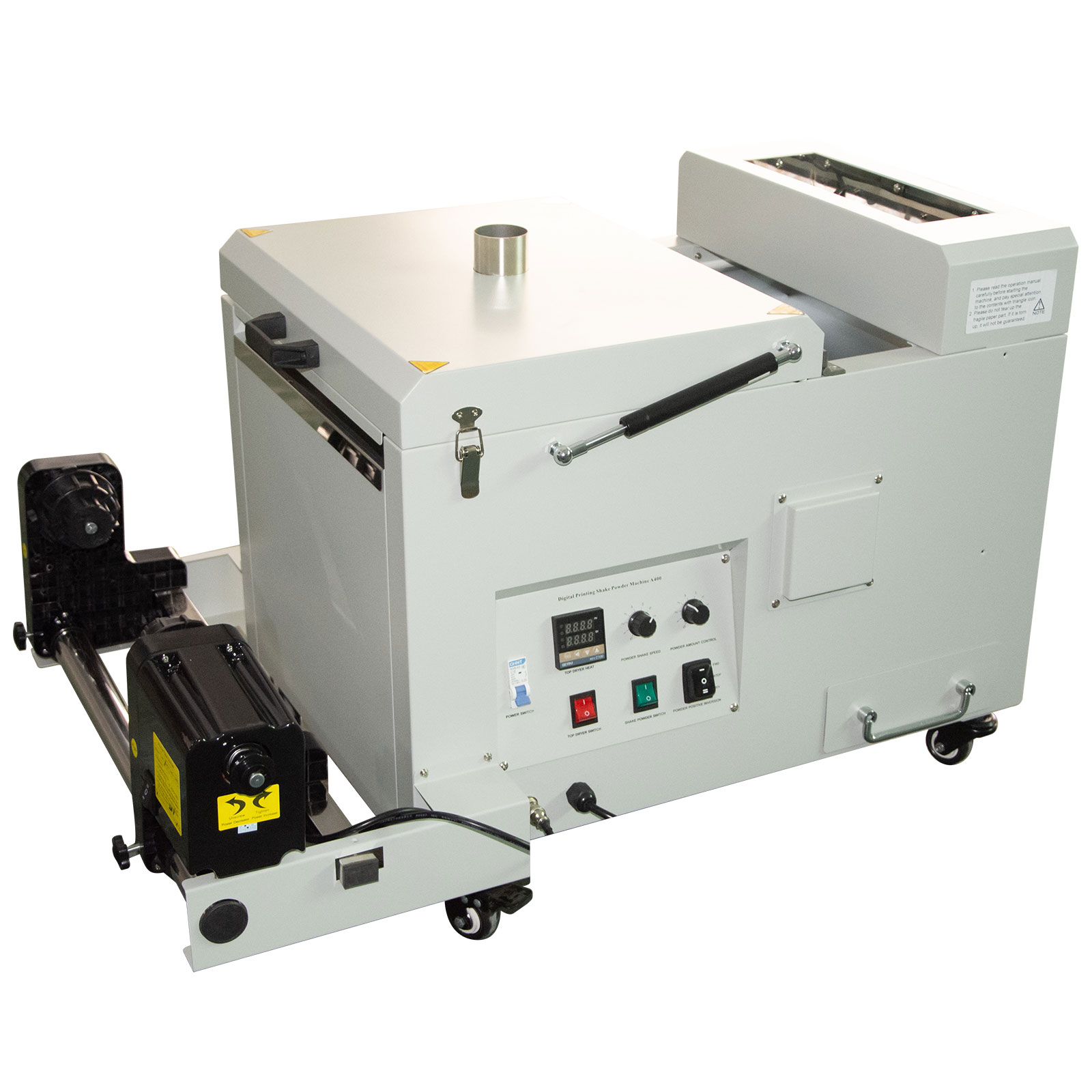

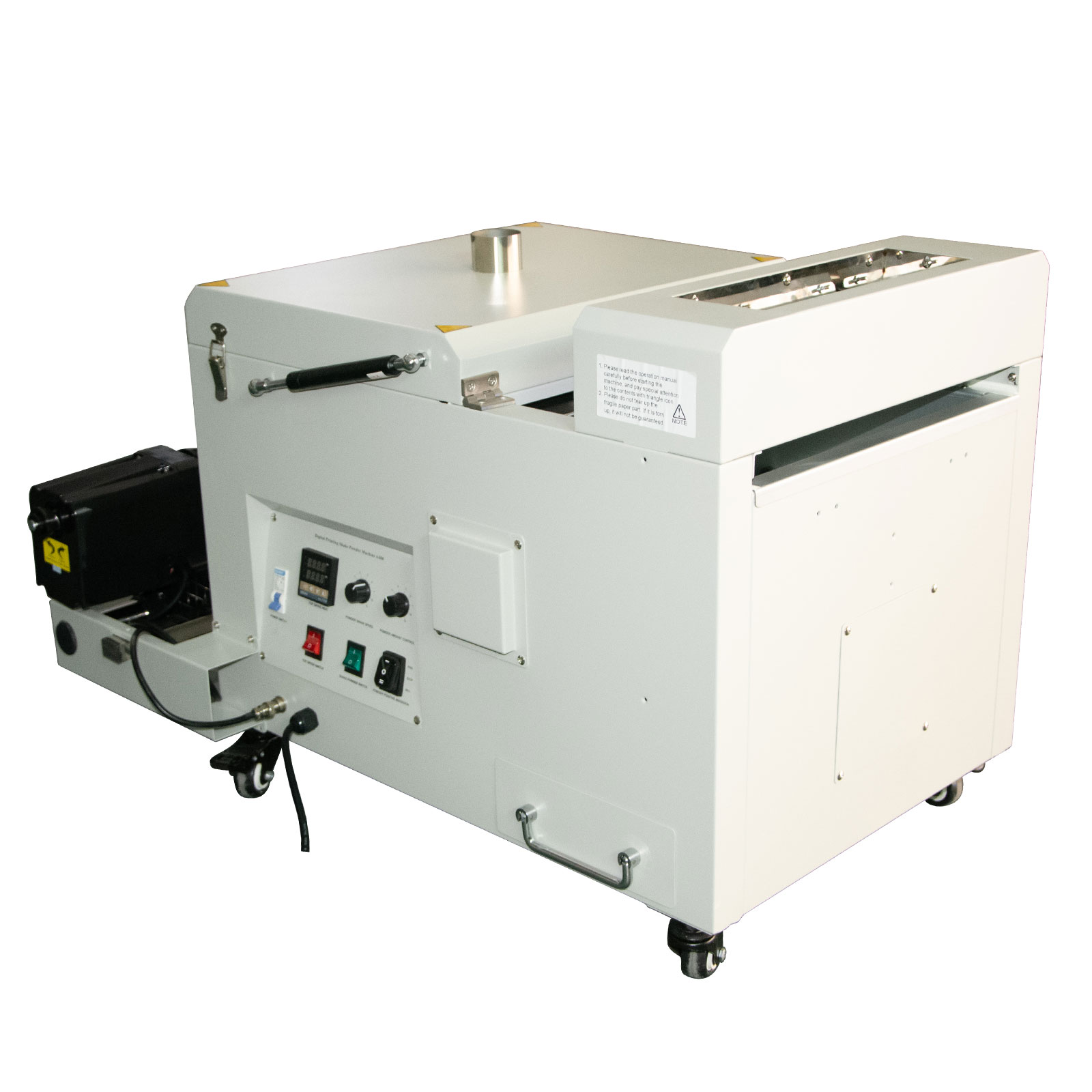

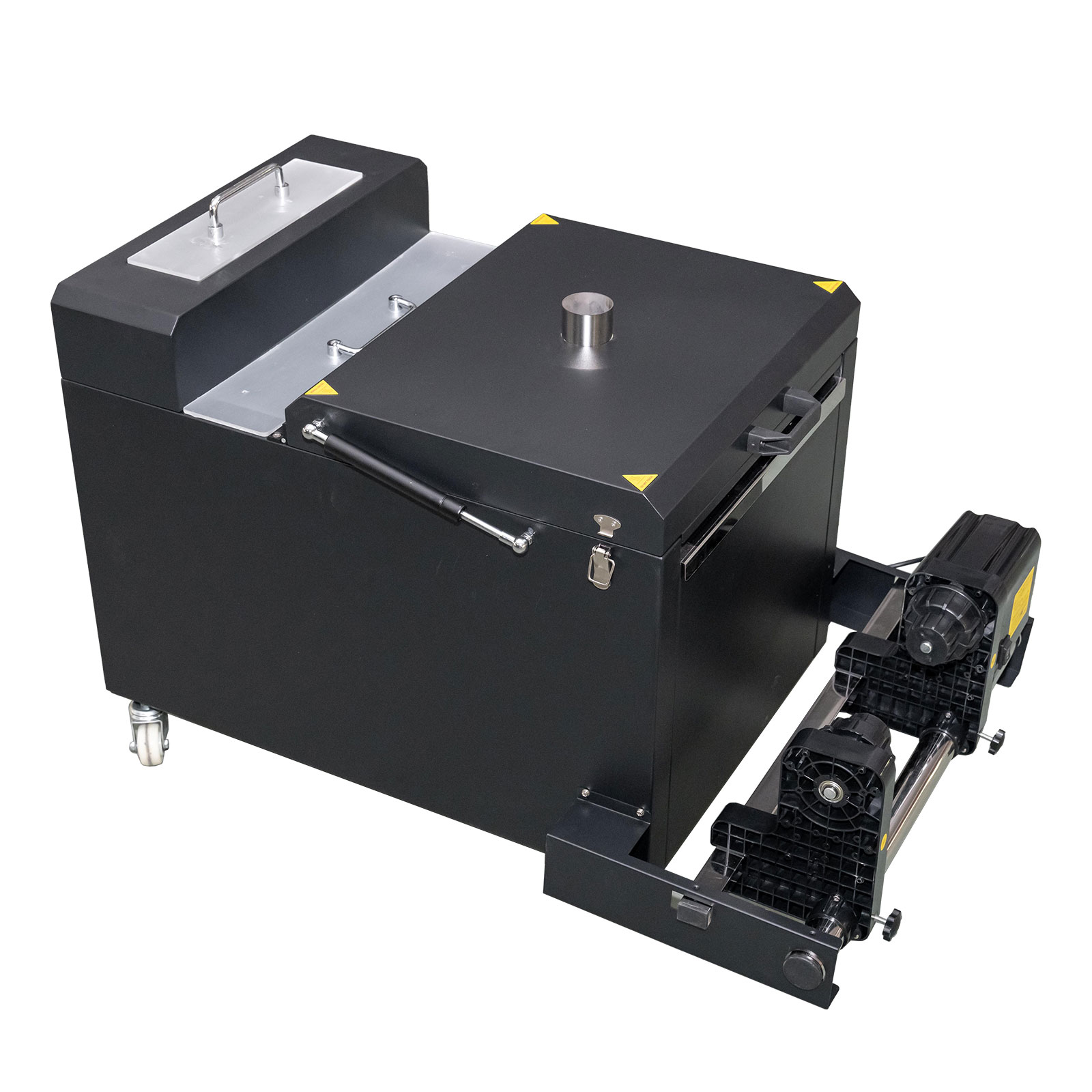

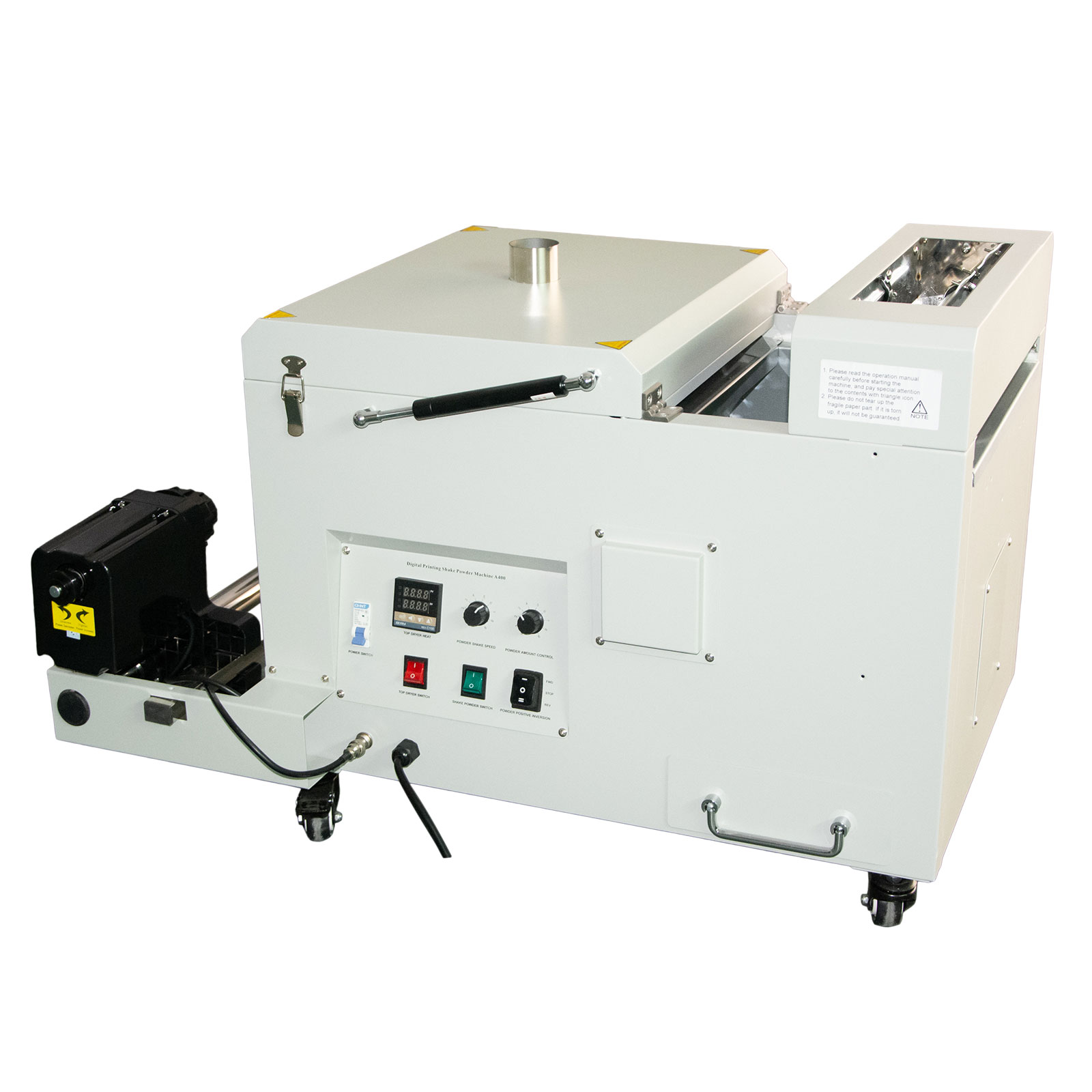

CALCA 13.4in (340mm) Economic Automatic TPU Adhesive Powder Shaker and Dryer Unit
CALCA DTF powder shaker and dryer unit can handle up to 13.4in wide DTF film.
DTF opens the door to a wide range of choices and is capable of printing onto non-treated cotton, silk, polyester, denim, nylon, leather, 50/50 blends, and more. It works equally well on white and dark textiles.
This all in one dtf powder shaker unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
Applicable Medium: Nylon, Chemical Fiber, Cotton, Leather, Swimsuit, Diving Suit, PVC, EVA, etc.
Powder spreading structure: The motor drives the brush to rotate to brush the hot melt powder out of the powder box.
Powder shaking device: the motor drives the powder shaking lever to beat the film to clean up excess hot melt powder.
CALCA Brand: USA registered
Maximum Shake Powder Width: 340mm (13.4inches)
Functions: Shake powder control, dusting control, PID setting of curing temperature

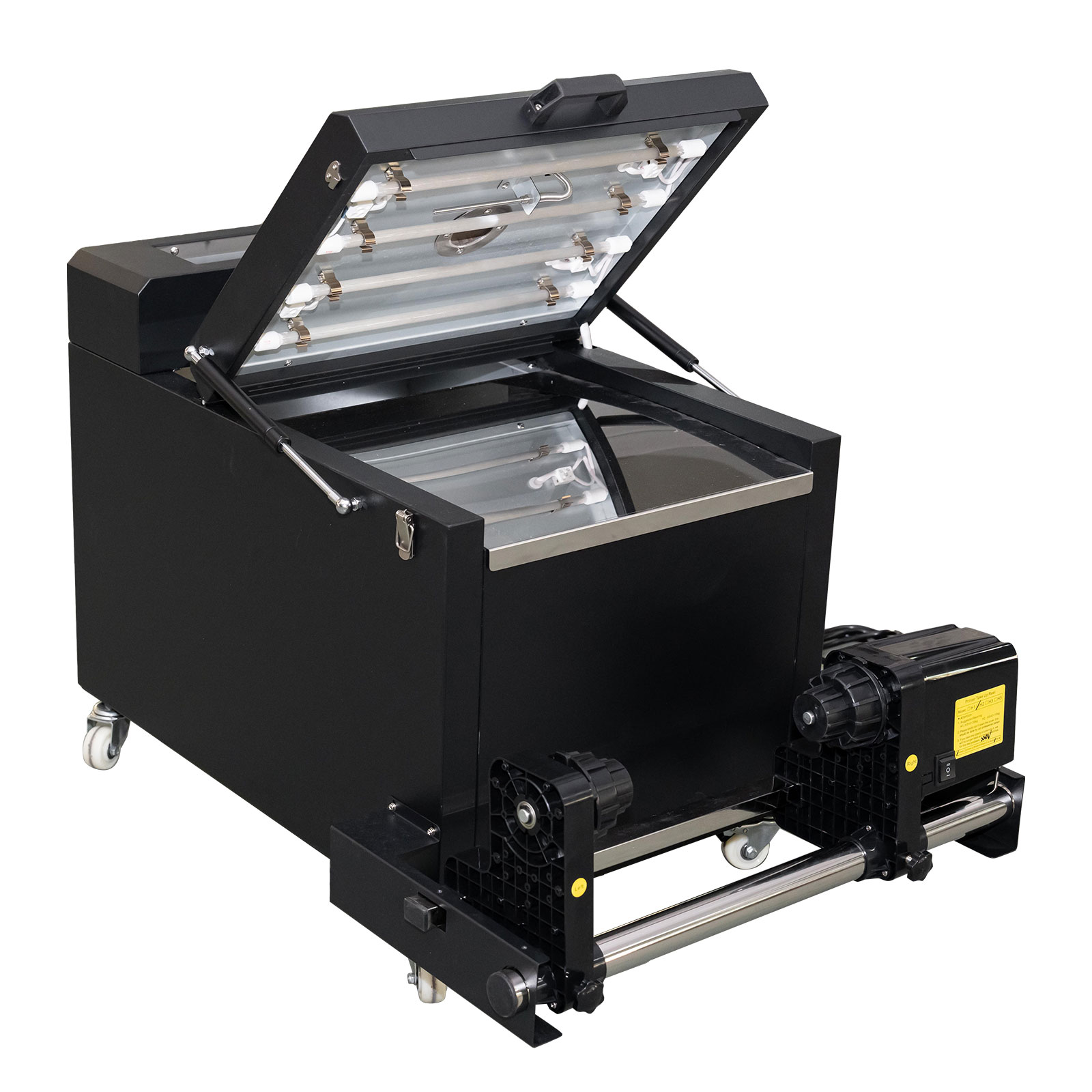

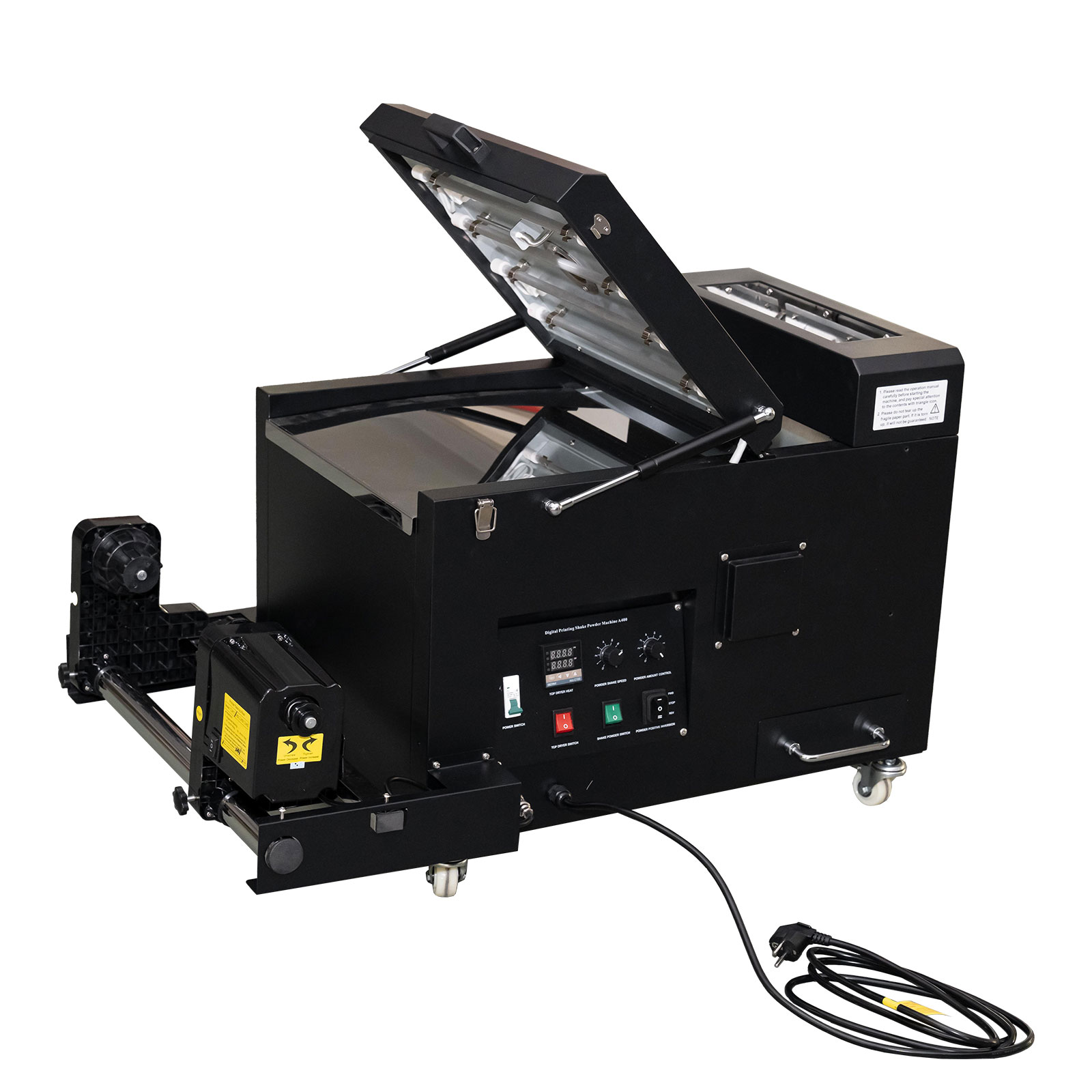

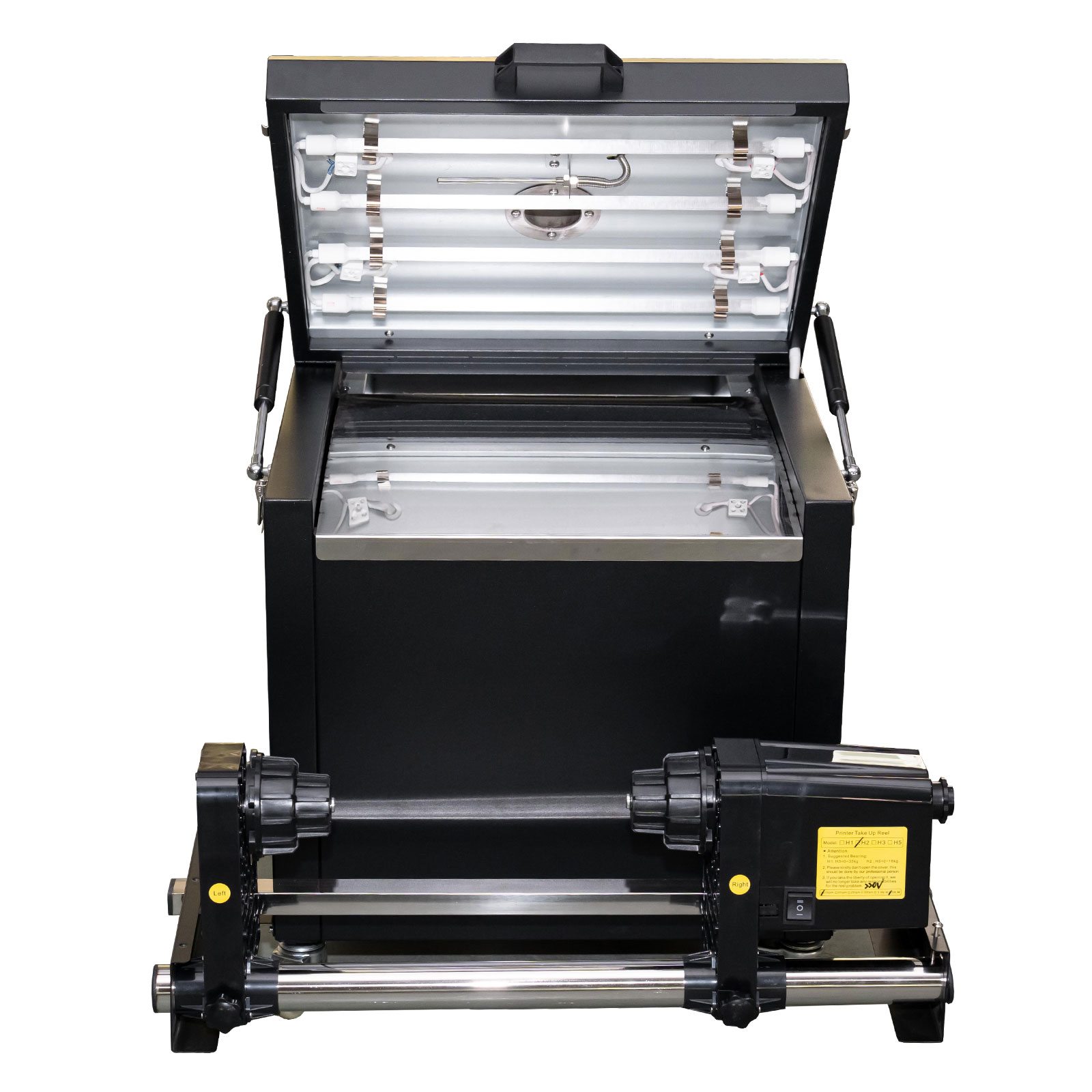

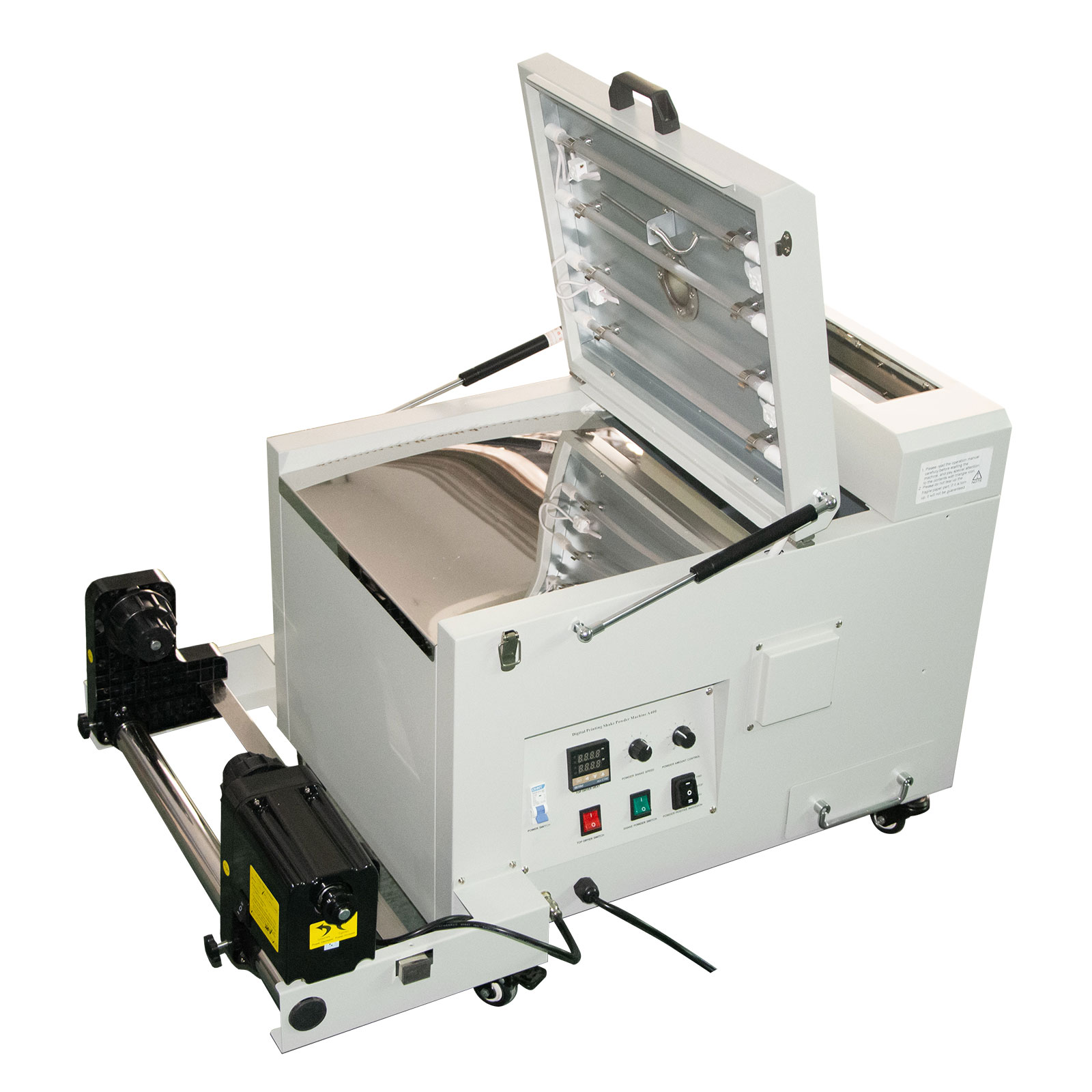

Heating and Drying Function: 4pcs Quartz infrared heat drying tube
Rewinding Function: Automatic induction rewinding
Heating Mode: Upper drying heating
Machine Size: 35.7in x 21.3in x 22.6in (907mm x 542mm x 574mm)
Powder Shaker and Dryer Weight: 79.2lbs (36kg)
Packaging Size: 29.5in x 23.4in x 23.2in (750mm x 595mm x 590mm)
Gross Weight: 110lbs (50kg)
Working Power Supply: AC110V, 50hz / 60hz, 1 phase.
Current: 15A, 1650W
With CALCA DTF film, power and Inks, you can easily and quickly create custom t-shirts and apparel.
· With a warming inlet platform, automatic powder dispenser, paddle to remove excess powder, 4 bulb tunnel dryer and roll up at the end.
· This all in one unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
· Infrared drying and heating improves and protects color reproduction.
· Customized powder recycling drawer, increases effectiveness.
· Shake powder control, dusting control, PID setting of curing temperature.
· Automatic powder feeding, evenly spreading powder.
