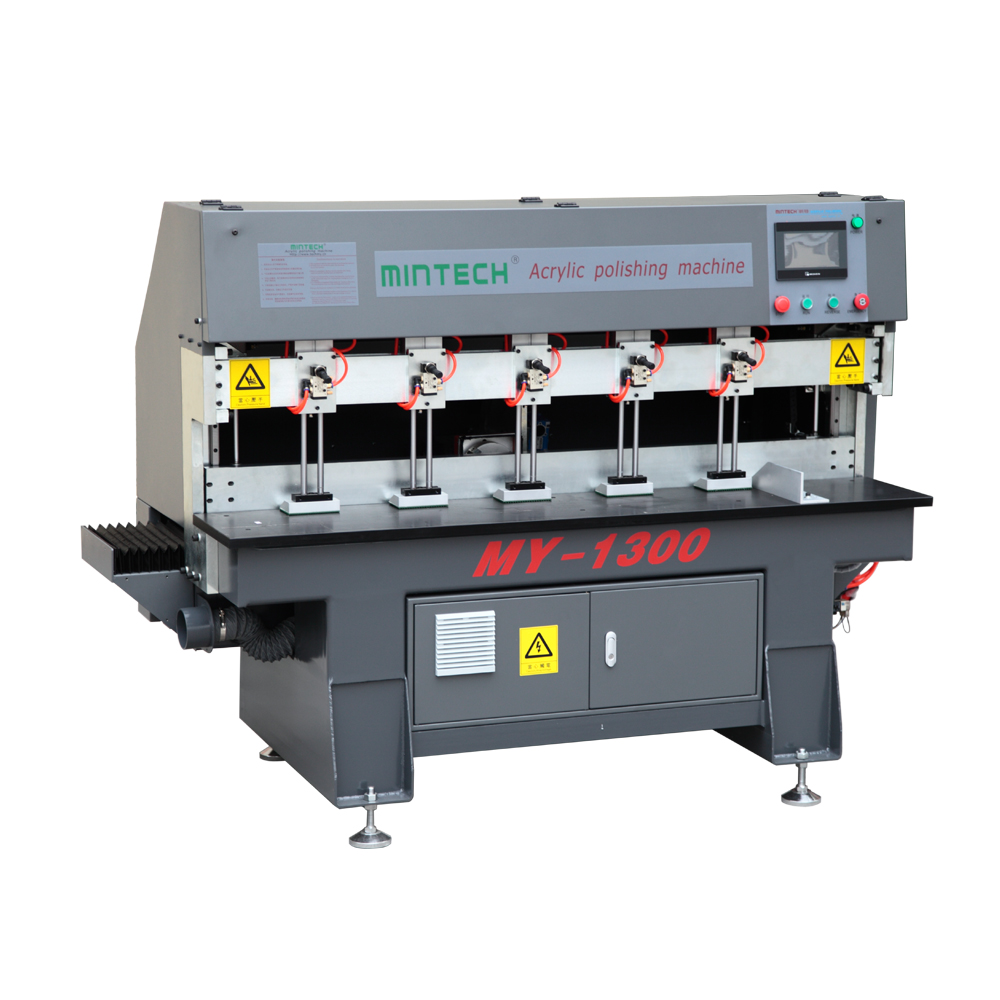

MINTECH+ Diamond Acrylic Edge Polishing Machine, Touch Screen Control
The machine is mainly used to polish plexiglass, acrylic, organic glass, PMMA, PETG, PE etc. It applies PCD and monocrystal cutting tools to process material finely and get mirror finish cutting surface. After polished, the products are high transparent, non-discoloring, especially perfect as light guide plate.
Features:
1.This machine is mainly used for polishing process on rear terminal of Acrylic for which it functions fast, good effects and environmental, etc.
2.The machine body, made of full steel structure by welding, high temperature process and precise machining tools, gives good machinery precision and stability.
3.PLC program control, servo motor driving, lead screw, straight linear guide rail driving, rapid and high controllability.
4.It adopts a Cylinder compacting material which is convenient for material up and down, very easy.
5.It can process the length at 1300mm (51”) or more longer materials, the straight edge or 45°angled edge, and the thickness each time process can be 100mm(3.93”).
6.The processing speed and its principal axis turning speed can be adjusted according work requirements.
7.It uses a principal axis to follow the type of vacuum，environmental and clean.
8.There is a pressure hand device which is to ensure not to crush your hands or other objects.
Product details:

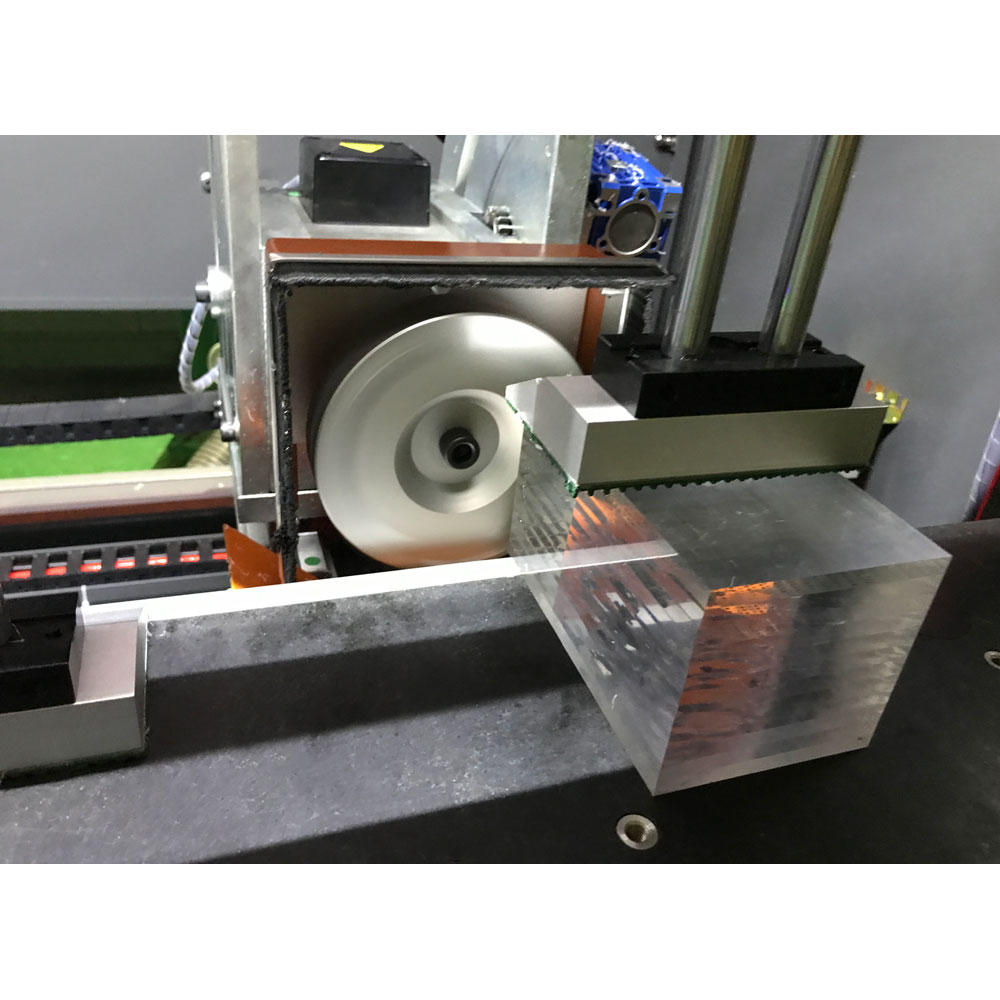

45-degree bevel processing:
The spindle can be turned 45 degrees:

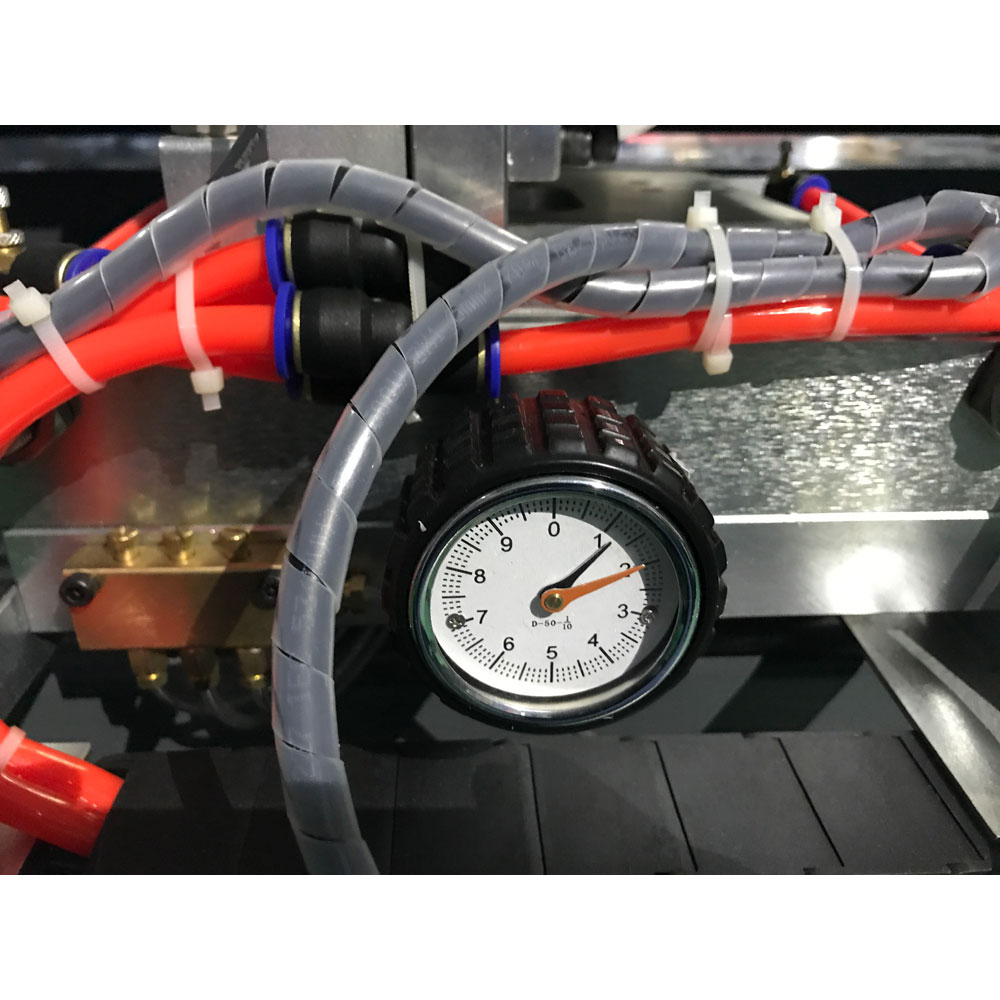

There is a pressure hand device and cutting depth adjustment:
Touch screen control panel (Provided with a protective film)

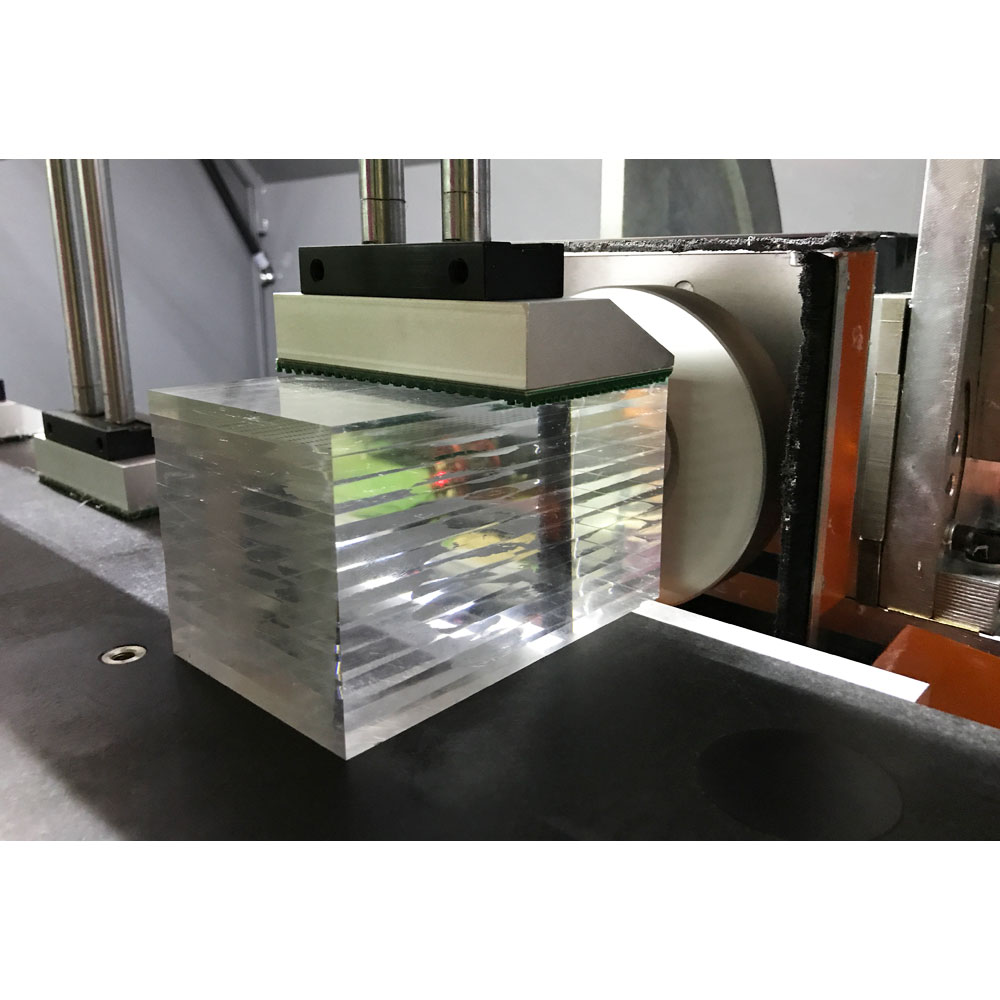

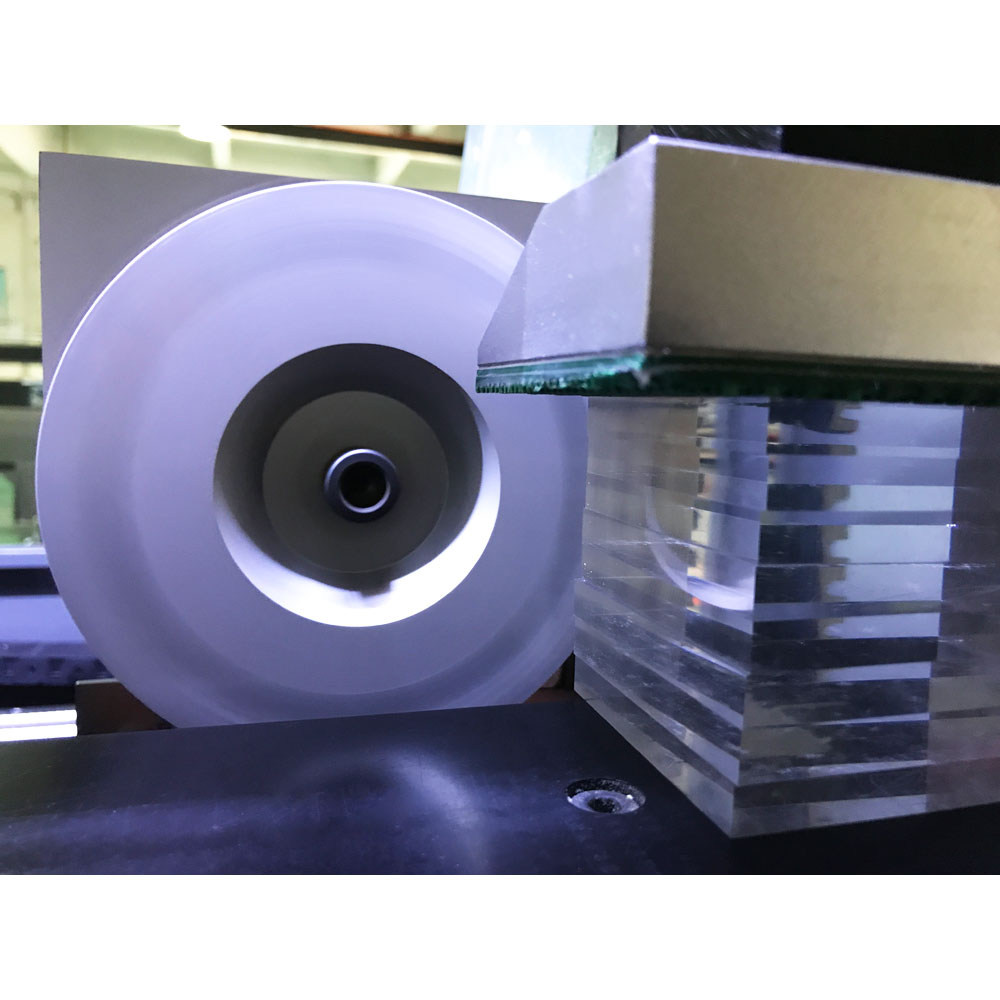

Thin, thick & stacked plastic edges polishing in a single pass:

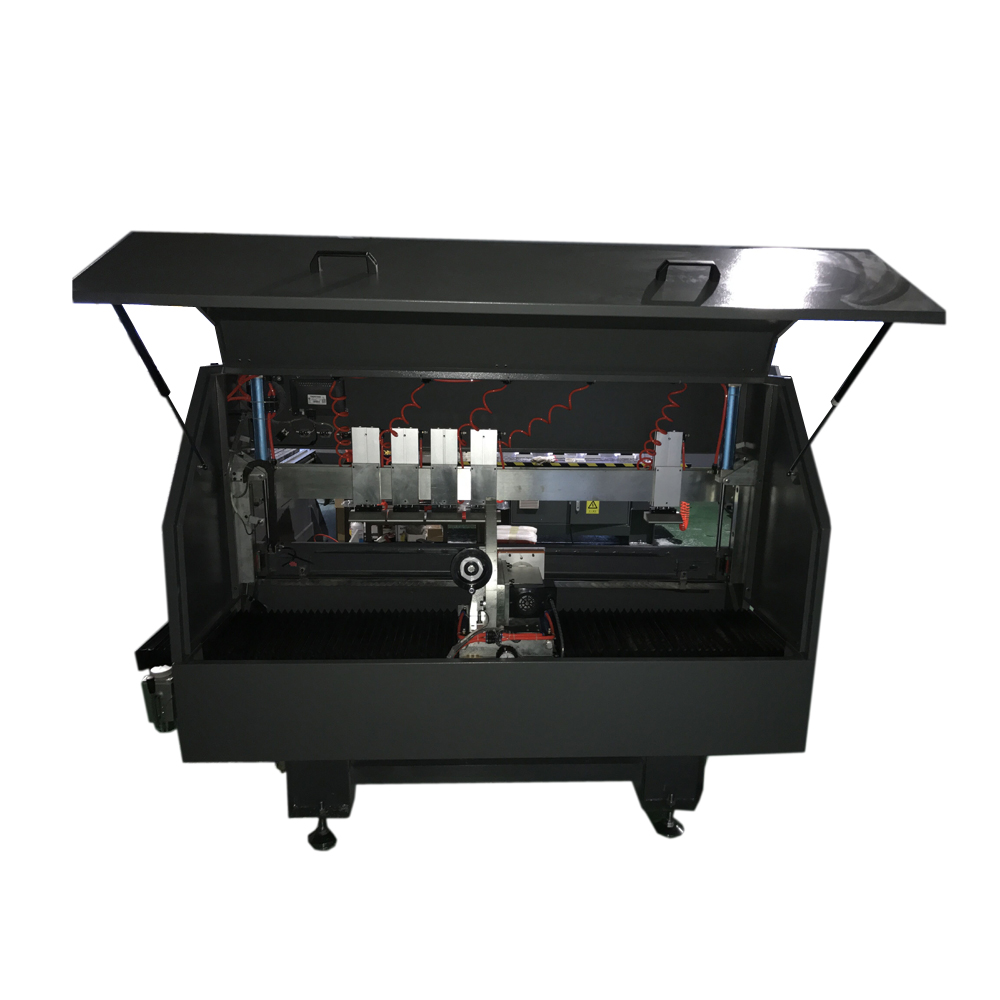

The cover can be opened:
There is a pressure hand device and cutting depth adjustment
Application:
Polishing the materials like acrylic, plastic, ABS, PVC and PMMA.
The Diamond Acrylic Edge Polisher is increasingly applied in organic products, LED and light guide plate, and photo frame making., etc.
Comparision:
Process:
Quality Report:
| Model | MY-1300-B-US |
| Machine Size | 2240mm(88”)x1000mm(39.3")x1520mm(42.9") |
| Package Size | 2400mm(95”)×1200mm(47”)×1800mm(70.8”) |
| Power Supply | 1PH 220V 10A |
| Spindle Speed | 1000~9000RPM |
| Cutting Speed | 0~2000mm (78.7”)/min |
| Cutting Angle | 0~45° |
| Cutting Septh | 0~2mm |
| Cutting Length | 1300mm (51”) |
| Cutting Thickness | 100mm (3.93”) |
| Cutting Mode | Spindle feeding |
| Machine Weight | 1100KG |
| Compressed Air | 0.6~0.8Mpa |
| The Size of Dust Mouth | 100mm (3.93”) |
Wooden Box: There are total one wooden box.
| Machine Dimension | 2240mm (88") x 1000mm (39.3") x 1520mm (42.9") |
| Machine Weight | 2204.6lb (1000kg) |
| Package | Fumigation free package |
| Packing Size | 2400mm (95") x 1200mm (47") x 1800mm (70.8") |
| Gross Weight | 2425lb (1100kg) |
Packing Picture:
Acrylic polishing machine operation：
Diamond polishing machine operation:
