Features
Three-in-One Functionality: Supports flatbed, roll-to-roll, and cylindrical printing modes.
AI Integration: Works with AI image generation and transformation software via mini-program or H5.
Automatic Maintenance: Includes auto cleaning, flash spraying, and anti-collision nozzle protection for longer printhead life.
Adjustable Print Speed & Pause Function: Users can adjust speed within recommended ranges and pause/resume printing without damaging materials.
Negative Pressure Ink System: Ensures stable and uniform ink ejection.
High Print Quality: Resolution options up to 2880dpi with intelligent variable droplet technology (as small as 3.5PL).
LED UV Curing System: Instant drying after printing.
Optional Upgrades: Visual positioning system, automatic height measurement, cylinder/roll fixtures.
Special Effects: Supports relief and varnish printing.
| Parameter | Specification |
| Product Name | 6090 Premium Edition UV Printer |
| Model | 6090 Premium Edition |
| Control Board | Hoson Board |
| Print Height | 0–200 mm (0–7.9 in), customizable |
| Print Resolution | 720/1440/2880 dpi |
| Number of Printheads | 3 |
| Printing Software | RIIN |
| Positioning System | Visual Positioning System (optional) |
| Nozzle Clog Prevention | Original Ink Cartridge System with Auto Stirring / Flash Spray |
| Printing Platform | Yinmei Air Suction Platform |
| Transmission System | X-axis: Single Guide Rail + Motor; Y-axis: Dual Guide Rails + Motor |
| Servo Motor | Leadshine Low-Voltage Servo Motor |
| Curing System | LED UV Lamp (Instant Drying) |
| Supported File Formats | tif, bmp, pdf, eps, jpg, etc. |
| Operating System | win7/win8/win10 |
| Working Environment | Temp: 15~35°C, Humidity: 20~30% |
| Cylinder/Roll Fixture | Optional |
| Printing Modes | Flatbed, Cylinder, Crystal Label Roll |
| AI Expansion | Supported (AI image generation & transformation) |
| Print Head Models | 3200U1 |
| Print Size | 60 x 90 cm (23.6 x 35.4 in) |
| Output Colors | CMYKW+V |
| Lifting Function | Beam Lifting |
| Inkjet Technology | Intelligent Variable Droplet (as small as 3.5PL) |
| Print Head Heating | Automatic Heating |
| Print Head Maintenance | Automatic Cleaning |
| Print Mode | Unidirectional / Bidirectional |
| Ink Supply System | Intelligent Dual-Route Negative Pressure |
| Nozzle Protection | Automatic Collision Detection & Prevention |
| Height Measurement | Manual (Auto optional) |
| Power Requirements | AC220/110, 50Hz~60Hz |
| Output Software | Professional Software |
| Special Effects | Relief / Varnish |
| Interface | Gigabit Fiber |
| Machine Dimensions (cm) | 170 x 137 x 75 cm (66.9 x 53.9 x 29.5 in) |
| Bare Machine Weight (kg) | 190 kg (418.9 lbs) |
| Packing Dimensions (cm) | 180 x 150 x 94 cm (70.9 x 59.1 x 37.0 in) |
| Packing Weight (kg) | 295 kg (650.4 lbs) |
| Machine Dimension | 1700*1370*750mm (67 x 54 x 29.5 in) |
| Machine Weight | 190 kg (418 lbs) |

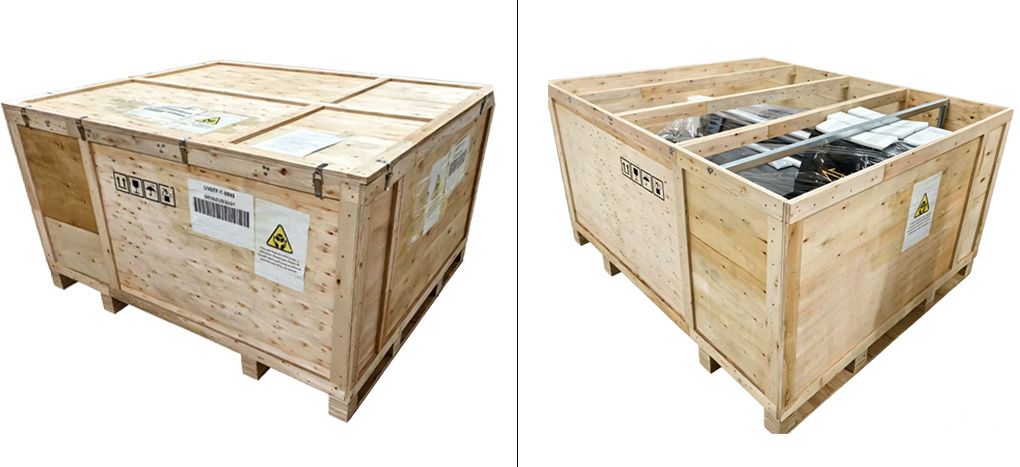

| Package | Wooden box |
| Packing Size | 1800*1500*940mm(71" x 59" x 37") |
| Gross Weight | 295kg(649lbs) |
Warranty
• Lifetime Technical Support
• Limited to 1-year warranty on non-consumable parts
Exceptions: Consumable Items
All Printers: Components that come in contact with inks includes the ink system, print heads, capping station (ink station), dampers, ink pump, ink tank, ink mixer, ink lines and power pump, consumable parts like CR motor, encoder strip, belt, decoder, sensors, wiper, print head cables, fans, rip software (discs or digital).
Company or person requesting warranty repair shall contact CALCA for pre-authorization and selection of a qualified repair technician to service the equipment prior to performing service on the equipment. Failure to request pre-authorization for service repair and selection will result in denial of a warranty claim.
CALCA will not be liable for labor or material costs associated with graphic production, graphic application, equipment downtime or any other consequential damages including loss of profits or potential business sales, arising out of a warranty claim. It is the user's responsibility to secure the equipment and surrounding area to prevent damage from damages arising from a warranty claim. CALCA is not responsible for damages from improper care, maintenance or repair of equipment associated with normal operation.
Extended Warranty:
- Printers: Extend to 2 years for an additional $999
